Wafer Dimensions and Parameters

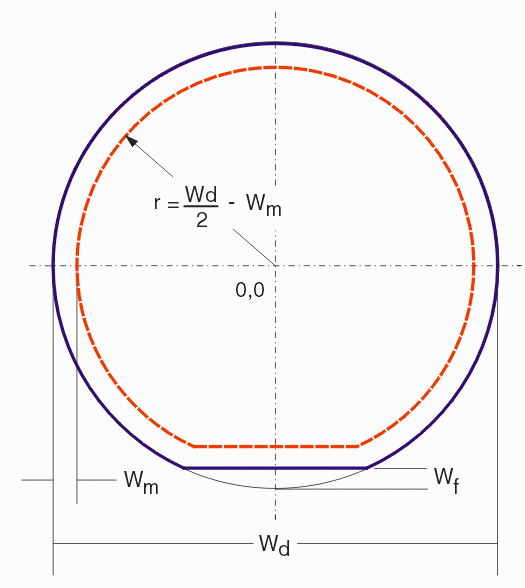

wafer dimensions (when a wafer flat is present

Wafer Dimensions (for wafers with a "flat".) Good die are completely inside the margin region.

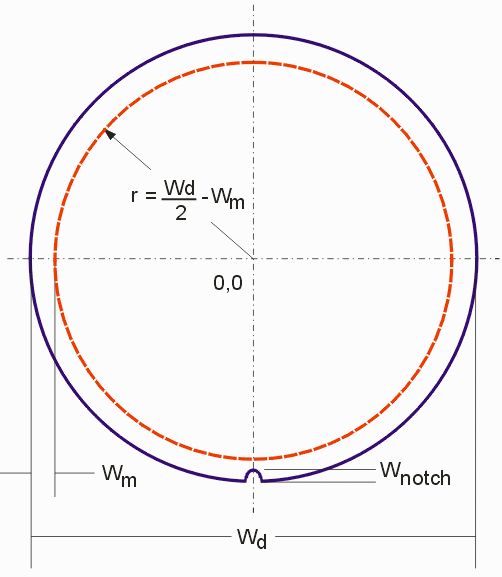

Most modern wafers use a small notch. This normally does not reduce useful die count because it does not extend past the margin.

wafer dimensions (when a wafer notch is present
