Results in Virtuoso



Below you can see the results of importing a full BGA (with die and wires) into Virtuoso.

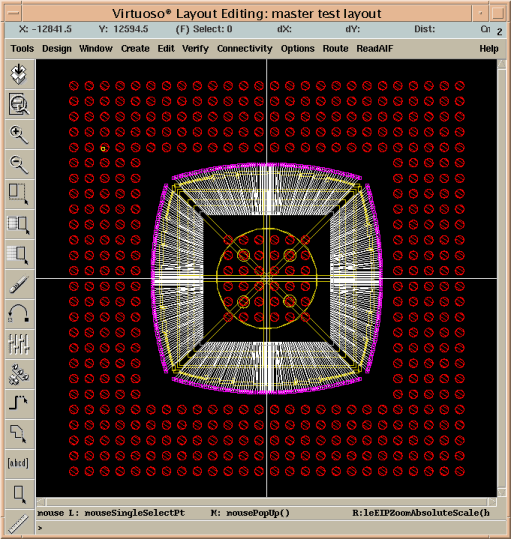

Full screen display of BGA in Virtuoso




Zoomed In View



To see in more detail we'll zoom into the upper left corner.

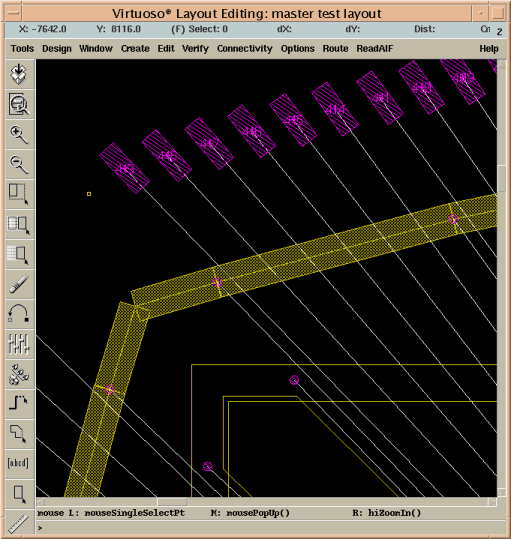

Zoomed in display of BGA in Virtuoso

You can see that each bond finger has a text label - the label's insertion point is placed at the center of the bond finger making it easy to write a script that will run wires from the die pad opening to the bond finger.
