GBRUnion DLL was developed to help enable software OEMs to do advanced processing on Gerber data such as correction, compensation and conversions. It is based on our very popular GBRUnion program but supplied in library format for OEM applications.

The library includes functions that allow a user to read RS274X and then to flatten the data, convert traces to boundaries, perform boolean operations such as union and sizing and to extract windows of data as needed.

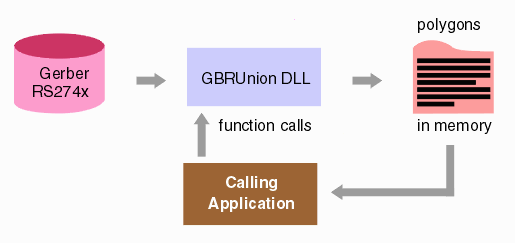

gbrunionlib flow illustration


Programmer's Corner

What's in the Release

Description of Functions

Example Flow

Polygon Data Structure

Sample Calling Application



Features

Built Using Visual Studio 2008

64 and 32 bit versions




Video Overview

https://vimeo.com/116918772 02:37 mm:ss





Download Price Revision History
