QisBool Execution Control Functions

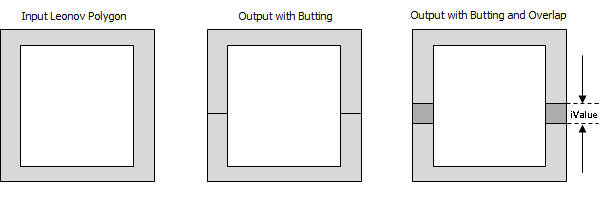

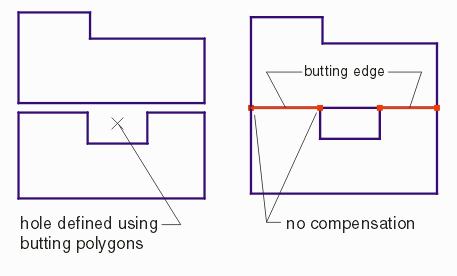

QisBoolOptions_SetOverlap



Objective

To specify the amount of overlap between the butting polygons obtained by converting leonov polygons to regular polygons.

Prototype

void QisBoolOptions_SetOverlap(

double iValue,

void* iBooleanHandle

);

Input Arguments

a.     double iValue: Specify the amount of overlap.

b.     void* iBooleanHandle: Handle to a QisBool object obtained using QisBool_Create.

Output Arguments

-

Return Value

-

Pre-Conditions

a.     The overlap amount (iValue) must be unitless. e.g If the file units is microns (um) with a grid/resolution of 0.001 and the required overlap amount is 0.5um, then iValue = (0.5)/0.001 = 500.

Operation

a.     This function updates the internal state of the QisBool object with the overlap value.

b.     This overlap value will only be used if QisBoolOptions_SetLeonovOutput is set with mode eLEONOV_OUT_BUTTING and the input polygon has holes (Leonov polygon). Both of these functions must be called before the Boolean operation is executed.

c.     To reset this feature, either use iValue = 0 or call QisBoolOptions_Reset.

d.     This function as well as QisBoolOptions_SetLeonovOutput affects the output of the following Boolean operation functions:

QisBool_Booleanize

QisBool_UnionMT

QisBool_BinaryMT


Post-Conditions

-

C++ Equivalent

virtual void IQisBool:: SetOverlap (

double iValue

) = 0;

See Also

QisBoolOptions_SetLeonovOutput

QisBool_Booleanize

QisBool_UnionMT

QisBool_BinaryMT

QisBoolOptions_Reset








QisBoolOptions_SetEnhancedValidation



Objective

Force QisBool to perform enhanced validation of polygons before performing Boolean operations on them to avoid unexpected behavior/results.

Prototype

void QisBoolOptions_SetEnhancedValidation(

EOnOff iOnOff,

void* iBooleanHandle

);

Input Arguments

a.     EOnOff iOnOff: eOFF or eON

b.     void* iBooleanHandle: Handle to a QisBool object obtained using QisBool_Create.

Output Arguments

-

Return Value

-

Pre-Conditions

a.     This function must be called before QisBool_Booleanize, QisBool_UnionMT or QisBool_BinaryMT.

b.     Default is eOFF

Operation

a.     This function sets a flag that forces maximum validation of input polygons before they are processed for Boolean operations.

b.     Setting this feature ON will affect performance of the Boolean operations. Therefore it must be used only when necessary.

Post-Conditions

a.     To reset this feature, call the function with eOFF or call QisBoolOptions_Reset.

C++ Equivalent

virtual void IQisBool:: SetEnhancedValidation(EOnOff iOnOff) = 0;

See Also

QisBoolOptions_Reset

QisBool_Booleanize

QisBool_UnionMT

QisBool_BinaryMT

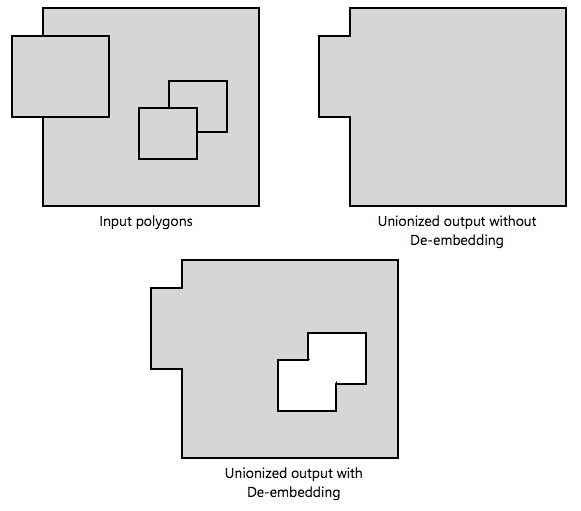

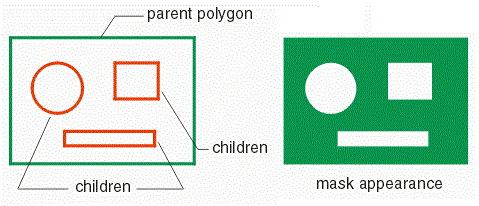

QisBoolOptions_SetDeEmbedding



Objective

To treat a polygon that lies completely inside another polygon as a hole during Boolean operations.

Prototype

void QisBoolOptions_SetDeEmbedding(

EOnOff iOnOff,

void* iBooleanHandle

);

Input Arguments

a.     EOnOff iOnOff: eOFF or eON

b.     void* iBooleanHandle: Handle to a QisBool object obtained using QisBool_Create.

Output Arguments

-

Return Value

-

Pre-Conditions

a.     This function must be called before QisBool_Booleanize.

b.     Default is eOFF

Operation

a.     This function sets a flag that informs QisBool to treat polygons that lie completely inside other polygons as holes and process them appropriately.

b.     If ON, the nature of the output will then depend on the QisBoolOptions_SetLeonovOutput setting.

c.     By default, (if this feature is OFF), the polygons that lie completely inside other polygons will be discarded as being redundant.


Post-Conditions

a.     To reset this feature, call the function with eOFF or call QisBoolOptions_Reset.

C++ Equivalent

virtual void IQisBool:: SetDeEmbedding(EOnOff iOnOff) = 0;

See Also

QisBoolOptions_Reset

QisBoolOptions_SetLeonovOutput

QisBool_Booleanize








QisBoolOptions_SetValidationMode



Objective

To set the level of validation to be performed on the input polygons before using them in Boolean operations.

Prototype

void QisBoolOptions_SetValidationMode(

EValidationMode iMode,

void* iBoolHandle

);

Input Arguments

a.     EValidationMode iMode:

eFULLY_VALIDATE : Perform validation. (Default)

eNO_SELF_INTR_CHK : Perform validation without self intersection check (reduced validation).

eNO_VALIDATION : Do not perform validation.

b.     void* iBooleanHandle: Handle to a QisBool object obtained using QisBool_Create.

Output Arguments

-

Return Value

-

Pre-Conditions

a.     This function must be called before QisBool_Booleanize, QisBool_UnionMT or QisBool_BinaryMT.

b.     Default is eFULLY_VALIDATE

Operation

a.     This function sets a flag that determines the degree of validation of input polygons before executing Boolean operations.

b.     This setting will affect the performance of Boolean operations as follows:

eFULLY_VALIDATE : Fast

eNO_SELF_INTR_CHK: Faster

eNO_VALIDATION: Fastest

Post-Conditions

a.     To reset this feature, call the function with eFULLY_VALIDATE or call QisBoolOptions_Reset.

C++ Equivalent

virtual void IQisBool:: SetValidationMode(EValidationMode iMode) = 0;

See Also

QisBoolOptions_Reset

QisBool_Booleanize

QisBool_UnionMT

QisBool_BinaryMT

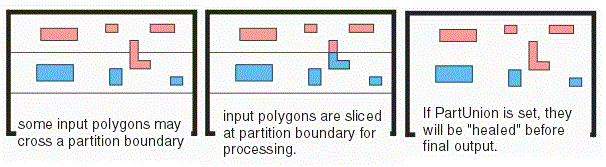

QisBoolOptions_SetPartUnion



Objective

To enable/disable union of data across stripes during QisBool_Booleanize.

Prototype

void QisBoolOptions_SetPartUnion(

EOnOff iOnOff,

void* iBooleanHandle

);

Input Arguments

a.     EOnOff iOnOff: eON or eOFF (default)

b.     void* iBooleanHandle: Handle to a QisBool object obtained using QisBool_Create.

Output Arguments

-

Return Value

-

Pre-Conditions

a.     This function must be called before QisBool_Booleanize.

b.     This option works only for QisBool_Booleanize.

c.     By default, the number of partitions is 1, therefore this option does not apply even if enabled.

Operation

a.     If QisBoolOptions_SetPartition is set such that number of partitions > 1, then this option determines if the data across partitions will be unionized (eON) or not (eOFF).


Post-Conditions

a.     To reset this feature, call the function with eOFF or call QisBoolOptions_Reset.

C++ Equivalent

virtual void IQisBool:: SetPartUnion(

EOnOff iOnOff

) = 0;

See Also

QisBoolOptions_Reset

QisBoolOptions_SetPartition

QisBool_Booleanize








QisBoolOptions_SetMaxPoints



Objective

To set the maximum number of vertices in output polygons generated by the Boolean operations.

Prototype

void QisBoolOptions_SetMaxPoints(

int iMaxPoints,

void* iBooleanHandle

);

Input Arguments

a.     int iMaxPoints: Maximum number of vertices for output polygons. (A rectangle has 5 vertices)

b.     void* iBooleanHandle: Handle to a QisBool object obtained using QisBool_Create.

Output Arguments

-

Return Value

-

Pre-Conditions

a.     This function must be called before QisBool_Booleanize, QisBool_UnionMT or QisBool_BinaryMT.

b.     By default, there is no limit on the number of vertices in the output polygons (also if iMaxPoints is set to 0)

Operation

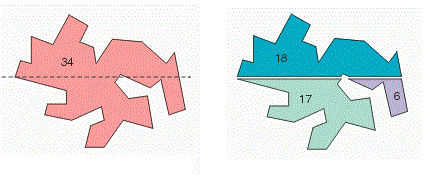

a.     This function can be used to control the number of vertices in output polygons generated by the Boolean operation functions.

Post-Conditions

a.     To reset this feature, call the function with iMaxPoints = 0 or call QisBoolOptions_Reset.

b.     QisLib allows a maximum of 8190 vertices per polygon. If the client wishes to use the output polygons with QisLib functions, this function must be used to set the maximum number of vertices to <= 8190.


C++ Equivalent

virtual void IQisBool:: SetMaxPoints(

int iMaxPoints

) = 0;

See Also

QisBoolOptions_Reset

QisBool_Booleanize

QisBool_UnionMT

QisBool_BinaryMT

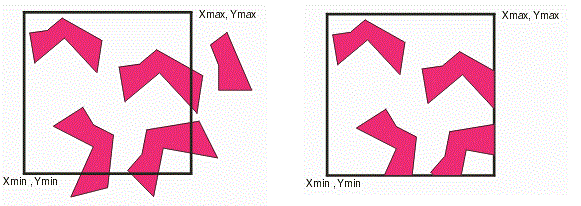

QisBoolOptions_SetClipWindow



Objective

To set a window for clipping polygons during Boolean operations.

Prototype

void QisBoolOptions_SetClipWindow(

int iMinX, int iMinY, int iMaxX, int iMaxY, void* iBooleanHandle

);

Input Arguments

a.     int iMinX, int iMinY, int iMaxX, int iMaxY: lower left and upper right co-ordinates of the clipping window.

b.     void* iBooleanHandle: Handle to a QisBool object obtained using QisBool_Create.

Output Arguments

-

Return Value

-

Pre-Conditions

a.     This function must be called before QisBool_Booleanize, QisBool_UnionMT or QisBool_BinaryMT.

b.     The width (iMaxX - iMinX) and height (iMaxY - iMinY) of the clipping window must be > 0.

Operation

a.     The clipping window set by this function will be used during the Boolean operations.

b.     The output polygons will be clipped against that window. By default, the polygons generated by the Boolean operations will not be clipped.


Post-Conditions

a.     To reset this feature, call QisBoolOptions_Reset.

C++ Equivalent

virtual void IQisBool:: SetClipWindow (

int iMinX, int iMinY, int iMaxX, int iMaxY

) = 0;

See Also

QisBoolOptions_Reset

QisBool_Booleanize

QisBool_UnionMT

QisBool_BinaryMT

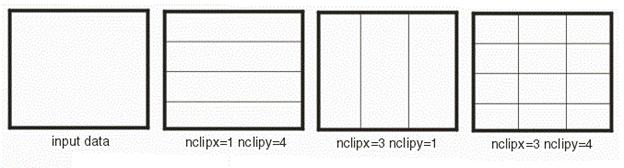

QisBoolOptions_SetPartition



Objective

To specify how the input data space will be partitioned during Boolean operations.

Prototype

void QisBoolOptions_SetPartition(

int iNClipX, int iNClipY, EPartitionModes iMode, void* iBooleanHandle

);

Input Arguments

a.     int iNClipX: Number of partitions in X.

b.     int iNClipY: Number of partitions in Y.

c.     EPartitionModes iMode:

eBOOL_PART_MODE_NONE : No partitioning. (default)

eBOOL_PART_MODE_AUTO : Auto partitioning.

eBOOL_PART_MODE_MANUAL : Manual partitioning using iNClipX and iNClipY.

d.     void* iBooleanHandle: Handle to a QisBool object obtained using QisBool_Create.

Output Arguments

-

Return Value

-

Pre-Conditions

a.     Sometimes when the input data set is large, it needs to be partitioned spatially to avoid the 'N squared' problem and for improving the efficiency of the computation.

b.     This function can only be used with QisBool_Booleanize. QisBool_UnionMT and QisBool_BinaryMT always use auto partitioning (eBOOL_PART_MODE_AUTO).

c.     During auto partitioning, QisBool partitions the data into horizontal stripes and determines the height of each stripe based on the data density.

Operation

a.     If QisBoolOptions_SetPartUnion is ON, the output data will be unionized regardless of the partitioning mode. (The partitions will be removed). This applies to QisBool_Booleanize only.

b.     If QisBoolOptions_SetPartUnion is OFF and partitioning mode is not eBOOL_PART_MODE_NONE, the partitions will appear in the output polygons (The output polygons will be clipped along partition boundaries). This applies to QisBool_Booleanize only.

c.     For QisBool_UnionMT and QisBool_BinaryMT, the polygons are unionized (partitions are removed) regardless of the above settings.


Post-Conditions

a.     To reset this feature, call this function with eBOOL_PART_MODE_NONE or call QisBoolOptions_Reset.

C++ Equivalent

virtual void IQisBool:: SetPartition(

int iNClipX, int iNClipY, EPartitionModes iMode

) = 0;

See Also

QisBoolOptions_Reset

QisBool_Booleanize

QisBool_UnionMT

QisBool_BinaryMT

QisBoolOptions_SetPartUnion

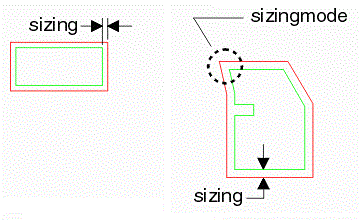

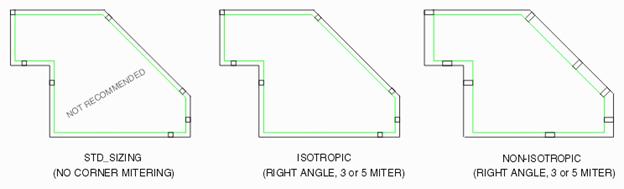

QisBoolOptions_SetSizingMode



Objective

To specify how to size the output polygons during Boolean operations.

Prototype

void QisBoolOptions_SetSizingMode(ESizingModes iMode, void* iBooleanHandle);

Input Arguments

a.     ESizingModes iMode:

eNO_SIZING : Do not size polygons. (default)

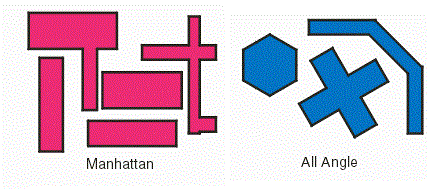

eSTANDARD_SIZING : Simplest form of sizing. This is fast but may result in illegal polygons. This should be used only when the data is guaranteed to be simple (fully convex, manhattan)

eISOTR_SIZING : A more complex form of sizing which ensures that illegal polygons will not be generated. However, the amount of sizing in X and Y is the same. This mode can be used in conjunction with QisBoolOptions_SetRoundCorners for further flavoring.

eNONISOTR_SIZING : Same as eISOTR_SIZING except that the amount of sizing in X and Y can be different. This mode can be used in conjunction with QisBoolOptions_SetRoundCorners for further flavoring.

b.     void* iBooleanHandle: Handle to a QisBool object obtained using QisBool_Create.

Output Arguments

-

Return Value

-

Pre-Conditions

a.     This function can be used with QisBool_Booleanize, QisBool_UnionMT and QisBool_BinaryMT.

b.     For eNONISOTR_SIZING the sizing parameters must be specified using QisBoolOptions_SetNonIsotrSizing.

c.     For eSTANDARD_SIZING or eISOTR_SIZING the sizing parameters must be specified using QisBoolOptions_SetSizing.

Operation

a.     This function sets the mode which will be applied at the end of the Boolean operations.

b.     The sizing amount can be negative (shrinking) or positive (expanding).


Post-Conditions

b.     To reset this feature, call this function with eNO_SIZING or call QisBoolOptions_Reset.

C++ Equivalent

virtual void IQisBool:: SetSizingMode(ESizingModes iMode) = 0;

See Also

QisBoolOptions_Reset

QisBool_Booleanize

QisBool_UnionMT

QisBool_BinaryMT

QisBoolOptions_SetRoundCorners

QisBoolOptions_SetNonIsotrSizing

QisBoolOptions_SetSizing








QisBoolOptions_SetSizing



Objective

To specify the sizing value to be used with Standard Sizing and Isotropic sizing.

Prototype

void QisBoolOptions_SetSizing(double iValue, void* iBooleanHandle);

Input Arguments

a.     double iValue: The amount of sizing to be applied in both X and Y.

b.     void* iBooleanHandle: Handle to a QisBool object obtained using QisBool_Create.

Output Arguments

-

Return Value

-

Pre-Conditions

a.     This function can be used with QisBool_Booleanize, QisBool_UnionMT and QisBool_BinaryMT.

b.     The amount of sizing can be negative or positive. The amount of sizing must be unitless. e.g If the file units is microns (um) with a grid of 0.001 and the required sizing amount is 0.5um, then iValue = (0.5)/0.001 = 500.

c.     This function must be used only if QisBoolOptions_SetSizingMode is set to eSTANDARD_SIZING or eISOTR_SIZING.

Operation

a.     This function sets the amount of standard sizing that will be applied at the end of the Boolean operations.


Post-Conditions

a.     To reset this feature, call this function with iValue = 0 or call QisBoolOptions_Reset.

C++ Equivalent

virtual void IQisBool:: SetSizing(double iValue) = 0;

See Also

QisBoolOptions_Reset

QisBool_Booleanize

QisBool_UnionMT

QisBool_BinaryMT

QisBoolOptions_SetSizingMode








QisBoolOptions_SetSmoothing



Objective

To smoothen output polygon edges by removing edges that are smaller than the specified threshold. (smoothing)

Prototype

void QisBoolOptions_SetSmoothing(double iValue, void* iBooleanHandle);

Input Arguments

a.     double iValue: The minimum acceptable length of an edge.

b.     void* iBooleanHandle: Handle to a QisBool object obtained using QisBool_Create.

Output Arguments

-

Return Value

-

Pre-Conditions

a.     This function can be used with QisBool_Booleanize, QisBool_UnionMT and QisBool_BinaryMT.

b.     The smoothing threshold must be unitless. e.g If the file units is microns (um) with a grid of 0.001 and the smoothing threshold is 0.5um, then iValue = (0.5)/0.001 = 500.

Operation

a.     This function sets the minimum length of edges in the output polygons and takes effect after the Boolean operations.

Post-Conditions

a.     To reset this feature, use iValue = 0.0 or call QisBoolOptions_Reset.

C++ Equivalent

virtual void IQisBool:: SetSmoothing(double iValue) = 0;

See Also

QisBoolOptions_Reset

QisBool_Booleanize

QisBool_UnionMT

QisBool_BinaryMT








QisBoolOptions_SetSliver



Objective

To remove polygons that are smaller/thinner than a certain size (sliver).

Prototype

void QisBoolOptions_SetSliver(double iValue, void* iBooleanHandle);

Input Arguments

a.     double iValue: The threshold for acceptable polygon size/thickness.

b.     void* iBooleanHandle: Handle to a QisBool object obtained using QisBool_Create.

Output Arguments

-

Return Value

-

Pre-Conditions

a.     This function can be used with QisBool_Booleanize, QisBool_UnionMT and QisBool_BinaryMT.

b.     The sliver value must be unitless. e.g If the file units is microns (um) with a grid of 0.001 and the sliver value is 0.5um, then iValue = (0.5)/0.001 = 500.

Operation

b.     This function removes an polygons from the output that are smaller in size or thickness than the specified sliver value.

Post-Conditions

b.     To reset this feature, use iValue = 0.0 or call QisBoolOptions_Reset.

C++ Equivalent

virtual void IQisBool:: SetSliver(double iValue) = 0;

See Also

QisBoolOptions_Reset

QisBool_Booleanize

QisBool_UnionMT

QisBool_BinaryMT








QisBoolOptions_SetChordError



Objective

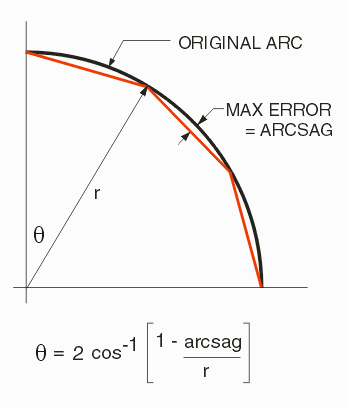

To specify a chord error for approximating the arcs in round paths.

Prototype

void QisBoolOptions_SetChordError(double iValue, void* iBooleanHandle);

Input Arguments

a.     double iValue: The maximum distance between a true arc and it's approximating line segment.

b.     void* iBooleanHandle: Handle to a QisBool object obtained using QisBool_Create.

Output Arguments

-

Return Value

-

Pre-Conditions

a.     This function can be used with QisBool_Booleanize, QisBool_UnionMT and QisBool_BinaryMT.

b.     The chord error must be unitless. e.g If the file units is microns (um) with a grid of 0.001 and the chord error is 0.5um, then iValue = (0.5)/0.001 = 500.

Operation

a.     This function sets the chord error (arcsag) which will be used to construct round paths.


Post-Conditions

a.     To reset this feature, use iValue = 0.0 or call QisBoolOptions_Reset.

C++ Equivalent

virtual void IQisBool:: SetChordError(double iValue) = 0;

See Also

QisBoolOptions_Reset

QisBool_Booleanize

QisBool_UnionMT

QisBool_BinaryMT








QisBoolOptions_SetNonIsotrSizing



Objective

To set the amount of sizing for non-isotropic sizing (mode eNONISOTR_SIZING for QisBoolOptions_SetSizingMode)

Prototype

void QisBoolOptions_SetNonIsotrSizing (

double iSizeX, double iSizeY, void* iBooleanHandle

);

Input Arguments

a.     double iSizeX, iSizeY: The amount of sizing to be applied in X and Y respectively.

b.     void* iBooleanHandle: Handle to a QisBool object obtained using QisBool_Create.

Output Arguments

-

Return Value

-

Pre-Conditions

a.     This function can be used with QisBool_Booleanize, QisBool_UnionMT and QisBool_BinaryMT.

b.     The amount of sizing can be negative or positive. The amount of sizing must be unitless. e.g If the file units is microns (um) with a grid of 0.001 and the required sizing amount is 0.5um, then iValue = (0.5)/0.001 = 500.

c.     This function must be used only if QisBoolOptions_SetSizingMode is set to eNONISOTR_SIZING.

Operation

a.     This function sets the amount of sizing in X and/or Y that will be applied at the end of the Boolean operations.

Post-Conditions

a.     To reset this feature, call this function with iSizeX = iSizeY = 0 or call QisBoolOptions_Reset.

C++ Equivalent

virtual void IQisBool::SetNonIsotrSizing(double iSizeX, double iSizeY) = 0;

See Also

QisBoolOptions_Reset

QisBool_Booleanize

QisBool_UnionMT

QisBool_BinaryMT

QisBoolOptions_SetSizingMode








QisBoolOptions_SetRoundCorners

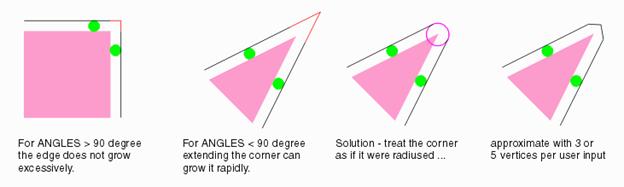

Objective

To control how round corners are handled during sizing when the sizing mode is set to eISOTR_SIZING or eNONISOTR_SIZING.

Prototype

void QisBoolOptions_SetRoundCorners(

ERoundCorners iMode,

void* iBooleanHandle

);

Input Arguments

a.     ERoundCorners iMode:

eRIGHT_ANGLE_CORNER : To be used for manhattan data.

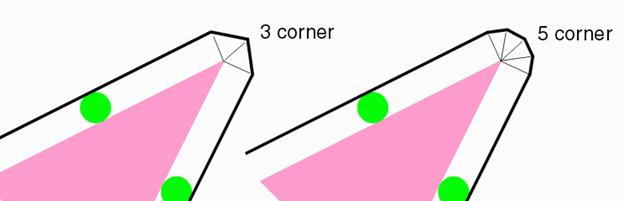

eTHREE_POINT_CORNER : Approximates a round corner as a set of three points equidistant from the original corner. (default)

eFIVE_POINT_CORNER : Approximates a round corner as a set of five points equidistant from the original corner.

b.     void* iBooleanHandle: Handle to a QisBool object obtained using QisBool_Create.

Output Arguments

-

Return Value

-

Pre-Conditions

a.     This function can be used with QisBool_Booleanize, QisBool_UnionMT and QisBool_BinaryMT.

b.     This function should be used when QisBoolOptions_SetSizingMode has been set to eISOTR_SIZING or eNONISOTR_SIZING.

Operation

a.     This function sets the mode for handling round corners and will take effect when the Boolean operations perform sizing.



Post-Conditions

a.     To reset this feature, set iMode = eTHREE_POINT_CORNER or call QisBoolOptions_Reset.

C++ Equivalent

virtual void IQisBool:: SetRoundCorners(ERoundCorners iMode) = 0;

See Also

QisBoolOptions_Reset

QisBool_Booleanize

QisBool_UnionMT

QisBool_BinaryMT

QisBoolOptions_SetSizingMode








QisBoolOptions_SetPartitioningThreshold

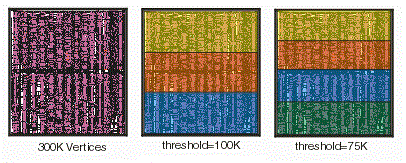

Objective

To control the number of vertices in a partition created during Boolean operations when the partition mode is set to eBOOL_PART_MODE_AUTO.

Prototype

void QisBoolOptions_SetPartitioningThreshold (

int iNVertPerPartition, void* iBooleanHandle

);

Input Arguments

a.     int iNVertPerPartition: Maximum number of vertices per partition. (default 500,000)

b.     void* iBooleanHandle: Handle to a QisBool object obtained using QisBool_Create.

Output Arguments

-

Return Value

-

Pre-Conditions

a.     This function can be used with QisBool_Booleanize, QisBool_UnionMT and QisBool_BinaryMT.

b.     This function should be used in conjunction with QisBoolOptions_SetPartition set to eBOOL_PART_MODE_AUTO.

Operation

a.     This function sets the vertex count to determine how to partition the data. It takes effect during the Boolean operations.

b.     During auto-partitioning, the data is spatially partitioned and clipped into stripes (horizontal partitions). The thickness of each stripe can be controlled by this function.


Post-Conditions

a.     To reset this feature, set iNVertPerPartition to 500,000 or call QisBoolOptions_Reset.

C++ Equivalent

virtual void IQisBool::SetPartitioningThreshold(int iNVertPerPartition) = 0;

See Also

QisBoolOptions_Reset

QisBool_Booleanize

QisBool_UnionMT

QisBool_BinaryMT

QisBoolOptions_SetPartition








QisBoolOptions_SetLeonovInput



Objective

To specify which of the input polygon data sets have Leonov polygons.

Prototype

void QisBoolOptions_SetLeonovInput (

ELeonovInput iMode, EOnOff iOnOff, void* iBooleanHandle

);

Input Arguments

a.     ELeonovInput iMode:

eLEONOV_OP_NONE : None of the input polygons sets have Leonov data. (default)

eLEONOV_OP_A : Polygon set#1 has Leonov data.

eLEONOV_OP_B : Polygon set#2 has Leonov data.

eLEONOV_OP_ALL : Both polygons sets have Leonov data.

b.     EOnOff iOnOff: If set to eOFF, iMode is ignored (same as default).

c.     void* iBooleanHandle: Handle to a QisBool object obtained using QisBool_Create.

Output Arguments

-

Return Value

-

Pre-Conditions

a.     This function can be used with QisBool_Booleanize, QisBool_UnionMT and QisBool_BinaryMT.

b.     If either of the input polygon sets have Leonov data, this function must be used appropriately. If not, then this function may not be used.

Operation

a.     This function informs the Boolean operations that some of the input polygons may be Leonov. Leonov polygons are represented as a continuous set of multiple polygons representing the outer boundary and the holes. It contains one polygon representing the outer boundary followed by multiple polygons representing holes. For outer boundary, the number of vertices is 'negative' and counter-clockwise. For holes, number of vertices is positive and clockwise.

b.     If either of the input sets contains Leonov polygons, QisBool assumes that this data is already unionized. It will therefore avoid unionizing them again. To force the Boolean operations to unionize the data despite them being Leonov, use QisBoolOptions_SetForceUnion.

c.     If this function is called more than once, it replaces the previous setting. Hence, the effect of calling this function multiple times is not cumulative.



Post-Conditions

b.     To reset this feature, set iMode = eLEONOV_OP_NONE or iOnOff = eOFF or call QisBoolOptions_Reset.

C++ Equivalent

virtual void IQisBool:: SetInputLeonov(ELeonovInput iMode, EOnOff iOnOff) = 0;

See Also

QisBoolOptions_Reset

QisBool_Booleanize

QisBool_UnionMT

QisBool_BinaryMT








QisBoolOptions_SetLeonovOutput



Objective

To control how to output polygons with holes (Leonov polygons)

Prototype

void QisBoolOptions_SetLeonovOutput (

ELeonovOutput iMode, void* iBooleanHandle

);

Input Arguments

a.     ELeonovOutput iMode:

eLEONOV_OUT_STD : Output Leonov polygons with cutlines. (default)

eLEONOV_OUT_LEONOV : Output Leonov polygons as Leonov.

eLEONOV_OUT_BUTTING : Output Leonov polygons with butting.

b.     void* iBooleanHandle: Handle to a QisBool object obtained using QisBool_Create.

Output Arguments

-

Return Value

-

Pre-Conditions

a.     This function can be used with QisBool_Booleanize, QisBool_UnionMT, QisBool_BinaryMT.

Operation

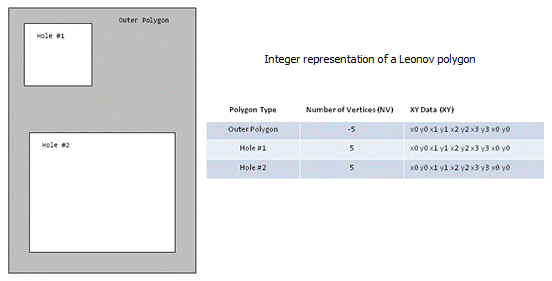

a.     Leonov polygons are represented as a continuous set of multiple polygons representing the outer boundary and the holes. It contains one polygon representing the outer boundary followed by multiple polygons representing holes. For outer boundary, the number of vertices is 'negative'. For holes, number of vertices is positive.

b.     Refer to this page for more information about Leonov polygons and various output modes.




Post-Conditions

a.     To reset this feature, set iMode = eLEONOV_OUT_STD or call QisBoolOptions_Reset.

C++ Equivalent

virtual void IQisBool:: SetOutputLeonov(ELeonovOutput iMode) = 0;

See Also

QisBoolOptions_Reset

QisBool_Booleanize

QisBool_UnionMT

QisBool_BinaryMT

QisBoolOptions_SetLeonovInput








QisBoolOptions_SetConvexOutput

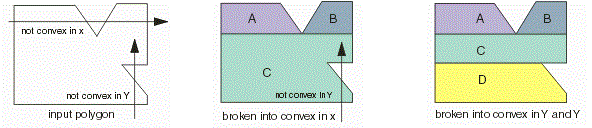

Objective

To control whether the output polygons must be tested for and made convex in X, fully convex or trapezoids.

Prototype

void QisBoolOptions_SetConvexOutput (

EConvexOutput iMode,

void* iBooleanHandle

);

Input Arguments

a.     EConvexOutput iMode:

eNO_CONVEX : There is no guarantee that the output polygons will be convex (default).

eCONVEX_IN_X : The output polygons are guaranteed to be convex in X.

eFULLY_CONVEX : The output polygons are guaranteed to be convex in X and Y.

eTRAPEZOIDS : The output polygons are guaranteed to be trapezoids.

b.     void* iBooleanHandle: Handle to a QisBool object obtained using QisBool_Create.

Output Arguments

-

Return Value

-

Pre-Conditions

a.     This function can be used with QisBool_Booleanize, QisBool_UnionMT, QisBool_BinaryMT.

Operation

a.     If this function is set in a mode other than eNO_CONVEX, the output polygons are tested and converted according to the specified convex mode during the Boolean operations.


Post-Conditions

a.     The option to output convex polygons does not work if the QisBoolOptions_SetLeonovOutput is set to eLEONOV_OUT_LEONOV.

b.     To reset this feature, set iMode = eNO_CONVEX or call QisBoolOptions_Reset.

C++ Equivalent

virtual void IQisBool::SetConvexOutput(EConvexOutput iMode) = 0;

See Also

QisBoolOptions_Reset

QisBool_Booleanize

QisBool_UnionMT

QisBool_BinaryMT

QisBoolOptions_SetLeonovOutput








QisBoolOptions_SetTestManhattan



Objective

To instruct the QisBool_Booleanize to test is the input data is manhattan.

Prototype

void QisBoolOptions_SetTestManhattan(

EManhFlag iMode,

void* iBooleanHandle

);

Input Arguments

a.     EManhFlag iMode:

eMANH_NOTEST : Do not test for manhattan data in the input. (default)

eMANH_TEST : Test for manhattan data in the input.

b.     void* iBooleanHandle: Handle to a QisBool object obtained using QisBool_Create.

Output Arguments

-

Return Value

-

Pre-Conditions

a.     This function can be used only with QisBool_Booleanize.

b.     QisBool_Booleanize can take advantage of some algorithmic adjustments that improves efficiency if it knows that all of the input data is manhattan.

Operation

a.     QisBool_Booleanize will process non-manhattan data regardless of this setting. However, enabling this check helps optimize the boolean operation if the data is indeed manhattan.


Post-Conditions

a.     To reset this feature, set iMode = eMANH_NOTEST or call QisBoolOptions_Reset.

C++ Equivalent

virtual void IQisBool:: SetTestManhattan(EManhFlag iMode) = 0;

See Also

QisBoolOptions_Reset

QisBool_Booleanize








QisBoolOptions_SetEdgePtCompensation

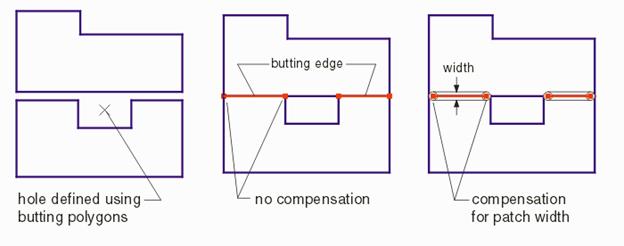

Objective

To control the width/thickness of the lines returned by QisBool_GetSliceEdges.

Prototype

void QisBoolOptions_SetEdgePtCompensation(

int iValue, void* iBooleanHandle

);

Input Arguments

a.     int iValue: The width/thickness (in database units) of the lines returned by QisBool_GetSliceEdges.

b.     void* iBooleanHandle: Handle to a QisBool object obtained using QisBool_Create

Output Arguments

-

Return Value

-

Pre-Conditions

a.     This function can be used with QisBool_Booleanize, QisBool_UnionMT and QisBool_BinaryMT.

b.     In order to get the edges common to the butting polygons, QisBoolOptions_SetReturnSliceEdges must be set to eON and the QisBoolOptions_SetLeonovOutput must be set to eLEONOV_OUT_BUTTING.

c.     The width must be unitless. e.g If the file units is microns (um) with a grid of 0.001 and the width is 0.5um, then iValue = (0.5)/0.001 = 500.

Operation

a.     Compensates the coordinates returned by QisBool_GetSliceEdges to account for the "width" of a so called patch line that a calling program will use later to cover up any butting edges.


Post-Conditions

a.     To reset this feature, set iValue = 0 or call QisBoolOptions_Reset.

C++ Equivalent

virtual void IQisBool::SetEdgePtCompensation(int iValue) = 0;

See Also

QisBoolOptions_Reset

QisBool_Booleanize

QisBool_UnionMT

QisBool_BinaryMT

QisBool_GetSliceEdges

QisBoolOptions_SetReturnSliceEdges








QisBoolOptions_SetForceUnion



Objective

To force the Boolean operations to unionize the input data even if it contains Leonov polygons.

Prototype

void QisBoolOptions_SetForceUnion(

EOnOff iOnOff,

void* iBooleanHandle

);

Input Arguments

a.     EOnOff iOnOff: eON (ON) or eOFF(OFF)

b.     void* iBooleanHandle: Handle to a QisBool object obtained using QisBool_Create

Output Arguments

-

Return Value

-

Pre-Conditions

a.     This function can be used with QisBool_Booleanize, QisBool_UnionMT and QisBool_BinaryMT.

Operation

a.     If either of the input polygons sets contain Leonov polygons (QisBoolOptions_SetLeonovInput), the Boolean operations assume that the data has already been unionized and will avoid unionizing them again. Using this function forces the Boolean operations to unionize the input data.

Post-Conditions

b.     To reset this feature, set iOnOff = eOFF or call QisBoolOptions_Reset.

C++ Equivalent

virtual void IQisBool:: SetForceUnion(EOnOff iOnOff) = 0;

See Also

QisBoolOptions_Reset

QisBool_Booleanize

QisBool_UnionMT

QisBool_BinaryMT

QisBoolOptions_SetLeonovInput








QisBoolOptions_SetReturnSliceEdges



Objective

To instruct the Boolean operations to remember the edges used to generate butting polygons (slices) so that it can be returned using QisBool_GetSliceEdges.

Prototype

void QisBoolOptions_SetReturnSliceEdges(

EOnOff iOnOff,

void* iBooleanHandle

);

Input Arguments

a.     EOnOff iOnOff: eON (ON) or eOFF(OFF)

b.     void* iBooleanHandle: Handle to a QisBool object obtained using QisBool_Create

Output Arguments

-

Return Value

-

Pre-Conditions

a.     This function can be used with QisBool_Booleanize, QisBool_UnionMT and QisBool_BinaryMT.

b.     In order to generate butting polygons, QisBoolOptions_SetLeonovOutput must be set to eLEONOV_OUT_BUTTING.

c.     In order to specify a width for these butting edges (slices), use QisBoolOptions_SetEdgePtCompensation

Operation

a.     If this function is set (eON), the Boolean operations remember the butting edges (slices) that generate the butting polygons.


Post-Conditions

a.     To reset this feature, set iOnOff = eOFF or call QisBoolOptions_Reset.

b.     To get the butting edges, call QisBool_GetSliceEdges.

C++ Equivalent

virtual void IQisBool::SetReturnSliceEdges(EOnOff iOnOff) = 0;

See Also

QisBoolOptions_Reset

QisBool_Booleanize

QisBool_UnionMT

QisBool_BinaryMT

QisBoolOptions_SetLeonovOutput

QisBoolOptions_SetEdgePtCompensation

QisBool_GetSliceEdges








QisBoolOptions_Reset



Objective

Reset QisBool settings.

Prototype

void QisBoolOptions_Reset(

void* iBooleanHandle

);

Input Arguments

a.     void* iBooleanHandle: Handle to a QisBool object obtained using QisBool_Create

Output Arguments

-

Return Value

-

Pre-Conditions

-

Operation

a.     Resets the various QisBool execution control settings that affect QisBool_Booleanize, QisBool_UnionMT and QisBool_BinaryMT to their default values.

Setting

Function

Default Value

Overlap between butting polygons

QisBoolOptions_SetOverlap

0.0

Enable DeEmbedding

QisBoolOptions_SetDeEmbedding

eOFF

Enhanced Validation

QisBoolOptions_SetEnhancedValidation

eOFF

Validation Mode

QisBoolOptions_SetValidationMode

eFULLY_VALIDATE

Force Union for Leonov input

QisBoolOptions_SetForceUnion

eOFF

Unionized partitions

QisBoolOptions_SetPartUnion

eOFF

Max. Output vertices

QisBoolOptions_SetMaxPoints

0 (Any)

Clipping window MinX,MinY to MaxX,MaxY

QisBoolOptions_SetClipWindow

-INT_MAX,-INT_MAX to INT_MAX,INT_MAX

Number of partitions in X

QisBoolOptions_SetPartition

1

Number of partitions in Y

QisBoolOptions_SetPartition

1

Partitioning mode

QisBoolOptions_SetPartition

eBOOL_PART_MODE_NONE

Auto-partition threshold

QisBoolOptions_SetPartitioningThreshold

500,000

Sizing Mode

QisBoolOptions_SetSizingMode

eNO_SIZING

Standard & Isotropic sizing

QisBoolOptions_SetSizing

0.0

Non Isotropic sizing X,Y

QisBoolOptions_SetNonIsotrSizing

0.0,0.0

Smoothing (Min. Edge size)

QisBoolOptions_SetSmoothing

0.0

Sliver (Min. Polygon size)

QisBoolOptions_SetSliver

0.0

Chord Error

QisBoolOptions_SetChordError

0.0

Get butting edges

QisBoolOptions_SetReturnSliceEdges

eOFF

Butting edge compensation

QisBoolOptions_SetEdgePtCompensation

0.0

Round Corners after sizing

QisBoolOptions_SetRoundCorners

eTHREE_POINT_CORNER

Leonov Input

QisBoolOptions_SetLeonovInput

eLEONOV_OP_NONE

Leonov Output

QisBoolOptions_SetLeonovOutput

eLEONOV_OUT_STD

Convex Output

QisBoolOptions_SetConvexOutput

eNO_CONVEX

Test Manhattan input

QisBoolOptions_SetTestManhattan

eMANH_NOTEST







Post-Conditions

-

C++ Equivalent

virtual void IQisBool::ResetOptions() = 0;

See Also

QisBool_Booleanize

QisBool_UnionMT

QisBool_BinaryMT










2012 Artwork Conversion Software Inc.

417 Ingalls St. Santa Cruz CA 95060

[T] +1 831-426-6163 [F] +1 831-426-2824 [E] info@artwork.com
