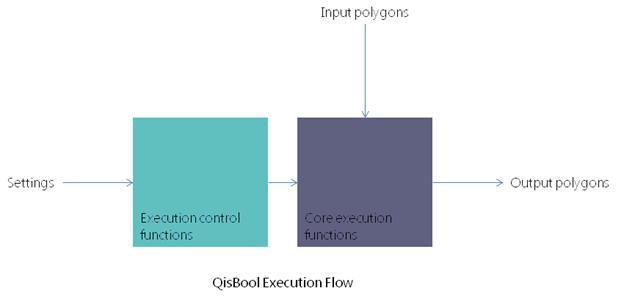

QisBool Core Functions











QisBool_Booleanize



Objective

To perform Boolean operations (single threaded) such as Unary Union, Binary Union, Difference, XOR and Intersection on up to two sets of polygons.

Prototype

int QisBool_Booleanize(

EBooleanOp iOpCode,

int** iXY1, int* iNV1, int iN1,

int** iXY2, int* iNV2, int iN2,

int*** oXY, int** oNV, int* oN,

void* iBooleanHandle

);

Input Arguments

a.     EBooleanOp iOpCode: Specifies the Boolean operation to be performed.

eUNION_OPCODE : Unary Union on Input Set #1

eDIFFERENCE_OPCODE : Input Set #1 - Input Set #2 (Difference)

eXOR_OPCODE : Input Set #1 XOR Input Set #2

eINTERSECTION_OPCODE : Input Set #1 AND Input Set #2

eBINARYUNION_OPCODE : Union of Input Set #1 and Input Set #2

b.     int iN1: Number of polygons in input set #1.

c.     int* iNV1: A list of vertex numbers, one per polygon in set #1. (For any closed polygon, number of vertices = number of sequential points + 1, the last vertex being same as the first).

d.     int** iXY1: A list of x,y co-ordinate values (number of pairs = number of vertices) per polygon in input set #1 (For a rectangle, there would be 5 x,y pairs or 10 integers representing x,y co-ordinates).

e.     int iN2, int* iNV2, int** iXY2 : Polygons belonging to input set #2.

f.      void* iBooleanHandle: Handle to a QisBool object (created using QisBool_Create).

Output Arguments

a.     int* oN: Address of an integer to store the number of output polygons.

b.     int** oNV: Address of an integer pointer which will point to a list of vertex numbers (int*) for each one of the output polygons.

a.     int*** oXY: Address of a integer double-pointer which will point to a list of x,y co-ordinate pairs for each one of the output polygons.

Return Value

a.     success: 0

b.     -1: Invalid (null) QisBool handle (iBooleanHandle)

c.     error: error code (<0). Call QisBool_ErrorMsg to get more information about this error.

d.     warning: warning code (>0). Call QisBool_ErrorMsg to get more information about this error.

Pre-Conditions

a.     Input set #1 (iN1, iNV1, iXY1) must contain valid polygons.

b.     Except for Unary Union (eUNION_OPCODE), Input Set #2 (iN2, iNV2, iXY2) must contain valid polygons. For Unary Union, this set can be empty (iN2=0, iNV2=NULL, iXY2=NULL).

c.     iBooleanHandle must be a handle returned by QisBool_Create but not destroyed by QisBool_Destroy.

d.     If the input data sets are not very large, it is advisable to use this function rather than the multi-threaded counterparts QisBool_UnionMT and QisBool_BinaryMT to avoid the overhead incurred by multi-threading.

e.     If either of the input data sets contains Leonov polygons, QisBool must be notified by calling QisBoolOptions_SetLeonovInput.

f.      The following functions may be called before QisBool_Booleanize to control it's execution:

QisBoolOptions_SetOverlap

QisBoolOptions_SetDeEmbedding

QisBoolOptions_SetEnhancedValidation

QisBoolOptions_SetValidationMode

QisBoolOptions_SetForceUnion

QisBoolOptions_SetPartUnion

QisBoolOptions_SetMaxPoints

QisBoolOptions_SetClipWindow

QisBoolOptions_SetPartition

QisBoolOptions_SetPartitioningThreshold

QisBoolOptions_SetSizingMode

QisBoolOptions_SetSizing

QisBoolOptions_SetNonIsotrSizing

QisBoolOptions_SetSmoothing

QisBoolOptions_SetSliver

QisBoolOptions_SetChordError

QisBoolOptions_SetReturnSliceEdges

QisBoolOptions_SetEdgePtCompensation

QisBoolOptions_SetRoundCorners

QisBoolOptions_SetLeonovInput

QisBoolOptions_SetLeonovOutput

QisBoolOptions_SetConvexOutput

QisBoolOptions_SetTestManhattan

g.     To avoid any un-intended side-effects from a previous run, it is advisable to call QisBoolOptions_Reset first to clear the internal settings before setting up the options (aforementioned functions) for this operation.

Operation

a.     This function performs the specified operation on Input Set #1 and Input Set #2 and allocates new memory to store the output polygons.

b.     This operation is single-threaded.

Post-Conditions

a.     If successful (return code 0), oN, oNV and oXY represent output polygons. If oN is 0, this set is empty. If an error occurs (return code < 0) the output data set is invalid.

b.     If the function returns a warning (return code > 0), it indicates that an error occurred at certain co-ordinates. Call QisBool_GetIllegalPolygonIndices to get the location of those co-ordinates.

c.     Since this function (if successful) allocates new memory to store data corresponding to the output polygons (oN, oNV, oXY), it is the client program's responsibility to free this memory by calling QisBool_Release, otherwise a memory leak will occur. This data is valid and can be used until it is freed using QisBool_Release.

C++ Equivalent

virtual int IQisBool::Booleanize(

EBooleanOp iOpCode,

int** iXY1, int* iNV1, int iN1,

int** iXY2, int* iNV2, int iN2,

int*** oXY, int** oNV, int* oN

) = 0;

See Also

QisBool_Create

QisBool_Destroy

QisBool_ErrorMsg

QisBool_Release

QisBool_GetIllegalPolygonIndices








QisBool_UnionMT



Objective

To perform multi-threaded Unary Union on a set of polygons.

Prototype

int QisBool_UnionMT(

int** iXY, int* iNV, int iN, int*** oXY, int** oNV, int* oN, short iNThreads,

void* iBooleanHandle

);

Input Arguments

a.     int iN: Number of polygons in the input set.

b.     int* iNV: A list of vertex numbers, one per polygon in the set. (For any closed polygon, number of vertices = number of sequential points + 1, the last vertex being same as the first).

c.     int** iXY: A list of x,y co-ordinate values (number of pairs = number of vertices) per polygon in the input set (For a rectangle, there would be 5 x,y pairs or 10 integers representing x,y co-ordinates).

d.     short iNThreads: Number of threads to be used to unionize the data.

e.     void* iBooleanHandle: Handle to a QisBool object (created using QisBool_Create).

Output Arguments

a.     int* oN: Address of an integer to store the number of output polygons.

b.     int** oNV: Address of an integer pointer which will point to a list of vertex numbers (int*) for each one of the output polygons.

b.     int*** oXY: Address of a integer double-pointer which will point to a list of x,y co-ordinate pairs for each one of the output polygons.

Return Value

a.     success: 0

b.     -1: Invalid (null) QisBool handle (iBooleanHandle)

c.     error: error code (<0). Call QisBool_ErrorMsg to get more information about this error.

Pre-Conditions

a.     The input set (iN, iNV, iXY) must contain valid polygons.

b.     iBooleanHandle must be a handle returned by QisBool_Create but not destroyed by QisBool_Destroy.

c.     If the input data set is very large, it is advisable to use this function rather than the single-threaded counterpart QisBool_Booleanize. In doing so, the number of threads should be used judiciously taking into consideration the processing power (multiple cores, hyper-threading) of the underlying hardware.

d.     If the input data set contains Leonov polygons, QisBool must be notified by calling QisBoolOptions_SetLeonovInput.

e.     The following functions may be called before QisBool_Booleanize to control its execution:

QisBoolOptions_SetOverlap

QisBoolOptions_SetEnhancedValidation

QisBoolOptions_SetValidationMode

QisBoolOptions_SetForceUnion

QisBoolOptions_SetMaxPoints

QisBoolOptions_SetClipWindow

QisBoolOptions_SetPartitioningThreshold

QisBoolOptions_SetSizingMode

QisBoolOptions_SetSizing

QisBoolOptions_SetNonIsotrSizing

QisBoolOptions_SetSmoothing

QisBoolOptions_SetSliver

QisBoolOptions_SetChordError

QisBoolOptions_SetReturnSliceEdges

QisBoolOptions_SetEdgePtCompensation

QisBoolOptions_SetRoundCorners

QisBoolOptions_SetLeonovInput

QisBoolOptions_SetLeonovOutput

QisBoolOptions_SetConvexOutput

f.      To avoid any un-intended side-effects from a previous run, it is advisable to call QisBoolOptions_Reset first to clear the internal settings before setting up the options (aforementioned functions) for this operation.

Operation

a.     This function unionizes the polygons in the input set and allocates new memory to store the output polygons.

b.     This function might fail of the number of instances of QisBool in use exceed a certain pre-defined internal limit. The thread management for the purpose of executing this function is handled internally and should be invisible to the client code.

Post-Conditions

a.     If successful (return code 0), oN, oNV and oXY represent output polygons. If oN is 0, this set is empty. If an error occurs (return code < 0) the output data set is invalid.

b.     Since this function (if successful) allocates new memory to store data corresponding to the output polygons (oN, oNV, oXY), it is the client program's responsibility to free this memory by calling QisBool_Release, otherwise a memory leak will occur. This data is valid and can be used until it is freed using QisBool_Release.

C++ Equivalent

virtual int IQisBool::UnionMT(

int** iXY, int* iNV, int iN, int*** oXY, int** oNV, int* oN, short iNThreads

) = 0;

See Also

QisBool_Create

QisBool_Destroy

QisBool_ErrorMsg

QisBool_Release








QisBool_BinaryMT



Objective

To perform multi-threaded Boolean operations such as Difference, XOR and Intersection on up to two sets of polygons.

Prototype

int QisBool_BinaryMT(

int** iXY1, int* iNV1, int iN1,

int** iXY2, int* iNV2, int iN2,

int*** oXY, int** oNV, int* oN,

short iNThreads, EBooleanOp iOpCode, void* iBooleanHandle

);

Input Arguments

a.     EBooleanOp iOpCode: Specifies the Boolean operation to be performed.

eUNION_OPCODE : Unary Union on Input Set #1

eDIFFERENCE_OPCODE : Input Set #1 - Input Set #2 (Difference)

eXOR_OPCODE : Input Set #1 XOR Input Set #2

eINTERSECTION_OPCODE : Input Set #1 AND Input Set #2

eBINARYUNION_OPCODE : Union of Input Set #1 and Input Set #2

b.     int iN1: Number of polygons in input set #1.

c.     int* iNV1: A list of vertex numbers, one per polygon in set #1. (For any closed polygon, number of vertices = number of sequential points + 1, the last vertex being same as the first).

d.     int** iXY1: A list of x,y co-ordinate values (number of pairs = number of vertices) per polygon in input set #1 (For a rectangle, there would be 5 x,y pairs or 10 integers representing x,y co-ordinates).

e.     int iN2, int* iNV2, int** iXY2 : Polygons belonging to input set #2.

f.      short iNThreads: Number of threads to be used to unionize the data.

g.     void* iBooleanHandle: Handle to a QisBool object (created using QisBool_Create).

Output Arguments

a.     int* oN: Address of an integer to store the number of output polygons.

b.     int** oNV: Address of an integer pointer which will point to a list of vertex numbers (int*) for each one of the output polygons.

c.     int*** oXY: Address of a integer double-pointer which will point to a list of x,y co-ordinate pairs for each one of the output polygons.

Return Value

a.     success: 0

b.     -1: Invalid (null) QisBool handle (iBooleanHandle)

c.     error: error code (<0). Call QisBool_ErrorMsg to get more information about this error.

Pre-Conditions

a.     Input sets #1 and #2 must contain valid polygons.

b.     iBooleanHandle must be a handle returned by QisBool_Create but not destroyed by QisBool_Destroy.

c.     If the input data set is very large, it is advisable to use this function rather than the single-threaded counterpart QisBool_Booleanize. In doing so, the number of threads should be used judiciously taking into consideration the processing power (multiple cores, hyper-threading) of the underlying hardware.

d.     If either of the input data sets contains Leonov polygons, QisBool must be notified by calling QisBoolOptions_SetLeonovInput.

e.     The following functions may be called before QisBool_Booleanize to control it's execution:

QisBoolOptions_SetOverlap

QisBoolOptions_SetEnhancedValidation

QisBoolOptions_SetValidationMode

QisBoolOptions_SetForceUnion

QisBoolOptions_SetMaxPoints

QisBoolOptions_SetClipWindow

QisBoolOptions_SetPartitioningThreshold

QisBoolOptions_SetSizingMode

QisBoolOptions_SetSizing

QisBoolOptions_SetNonIsotrSizing

QisBoolOptions_SetSmoothing

QisBoolOptions_SetSliver

QisBoolOptions_SetChordError

QisBoolOptions_SetReturnSliceEdges

QisBoolOptions_SetEdgePtCompensation

QisBoolOptions_SetRoundCorners

QisBoolOptions_SetLeonovInput

QisBoolOptions_SetLeonovOutput

QisBoolOptions_SetConvexOutput

f.      To avoid any un-intended side-effects from a previous run, it is advisable to call QisBoolOptions_Reset first to clear the internal settings before setting up the options (aforementioned functions) for this operation.

Operation

a.     This function performs the specified operation on Input Set #1 and Input Set #2 and allocates new memory to store the output polygons.

b.     This function might fail of the number of instances of QisBool in use exceed a certain pre-defined internal limit. The thread management for the purpose of executing this function is handed internally and should be invisible to the client code.

Post-Conditions

a.     If successful (return code 0), oN, oNV and oXY represent output polygons. If oN is 0, this set is empty. If an error occurs (return code < 0) the output data set is invalid.

b.     Since this function (if successful) allocates new memory to store data corresponding to the output polygons (oN, oNV, oXY), it is the client program's responsibility to free this memory by calling QisBool_Release, otherwise a memory leak will occur. This data is valid and can be used until it is freed using QisBool_Release.

C++ Equivalent

virtual int IQisBool:: BinaryMT(

int** iXY1, int* iNV1, int iN1,

int** iXY2, int* iNV2, int iN2,

int*** oXY, int** oNV, int* oN,

short iNThreads, EBooleanOp iOpCode

) = 0;

See Also

QisBool_Create

QisBool_Destroy

QisBool_ErrorMsg

QisBool_Release
