Wafer and Die Setttings

    In this example we are working with:

    a) a 200 mm diameter wafer

    b) an exclusion zone of 2.5 mm at all edges of the wafer

    c) a die of 3000 x 3000 um with a street width of 50 um

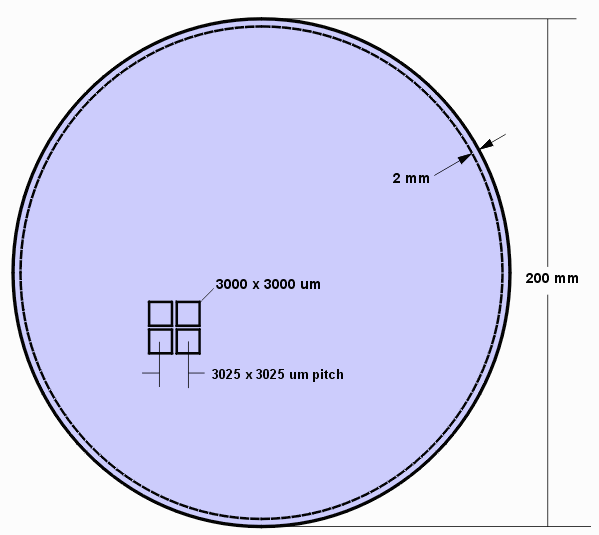

You can see a simple drawing of where we are starting below:








Next - Notes on matching the existing pattern on the wafer and openings ....
