AutoCAD 3D Output from NETEX-G

Loading the ASCII into AutoCAD

To create the 3D model you should have installed the NetexIn module into either AutoCAD 2000 or 2002. You need the full version of AutoCAD -- not AutoCAD LT.

  • Start a New Empty Drawing

  • Click on the NetexIn pull down and select: New Project.

  • Select the file to import. In this case it is called bf2.txt

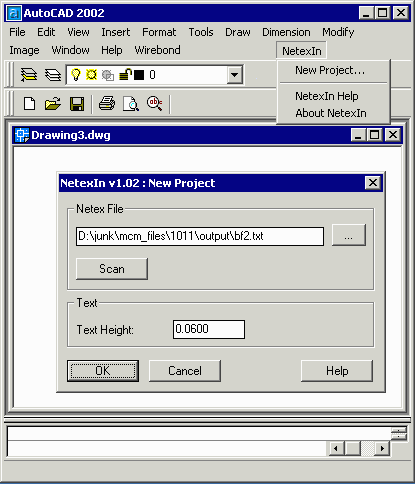

Netex In Pulldown and file selection dialog box.
