Running Calibre RVE with Qckvu

Opening Dialog

Upon starting Calibre RVE you will see the following opening dialog. You will need to open an error database file (.db)

   Calibre RVE's Opening Dialog


Selecting the DB File

Tell Calibre what type of database file to open: Qckvu supports only DRC/ERC files and which directory to open.







Then select the file you wish to analyze. 		  Selecting the Calibre RVE DB file


Selecting the Calibre RVE DB file


RVE Configuration

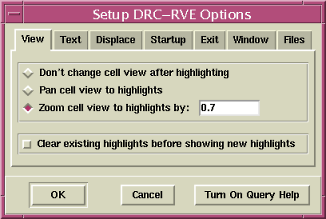

RVE has many configuration settings. One that you may wish to adjust when using Qckvu for viewing errors is the zoom in value.


  RVE Zoom in settings
