GBRUnion - Butting Option

When the output geometry requires an island area there are several ways of creating the island. The preferred method varies depending on the output format and the target software.

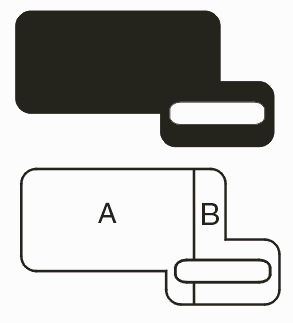

  island formed by two shapes butting up against each other.

One way to form an "island" is to use two or more shapes that have no islands but which butt up against each other to form the island.
