Coloring Your Ball Map

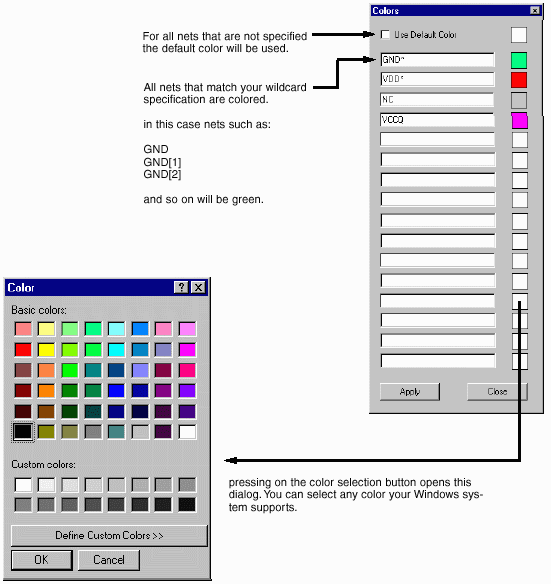

Ball maps are generally colored by net - for example all ground nets could be a shade of green and power nets might be red. The Ballmap program enables the user to use wildcards so that groups of nets can be easily colored.
