Sample AIF File

April 3, 2001

Often the easiest way to pick up a new format is to review some examples. You'll find some very simple ones initially and then more complex ones as you go farther down the page.

All of these files can be downloaded by clicking on the link. They are plain text files.

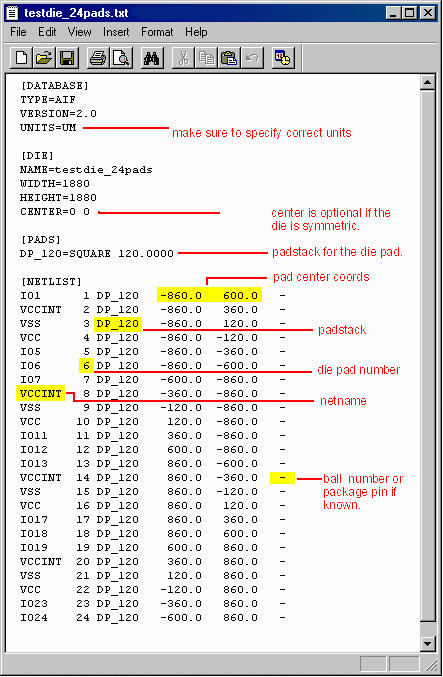

Example 1 testdie_24pads.txt

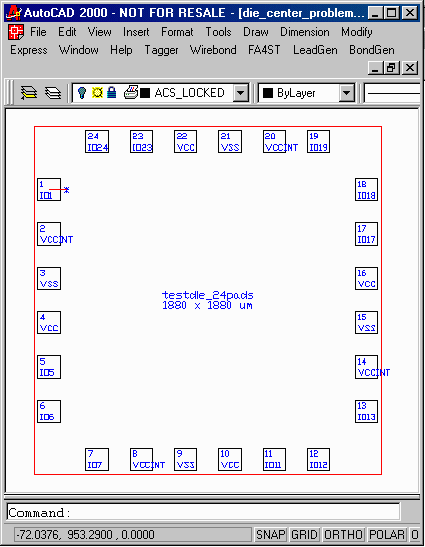

This is a simple 24 pad die. The pad opening is 120 um square. If you scroll down you can see what the die layout and labels should look like.


Download a DXF to view it in AutoCAD.

testdie_24pads.dxf

for you IC designers here is the die in GDSII format.


testdie_24pads.gds
