Viewing the IPC D 356 Nets and Nodes

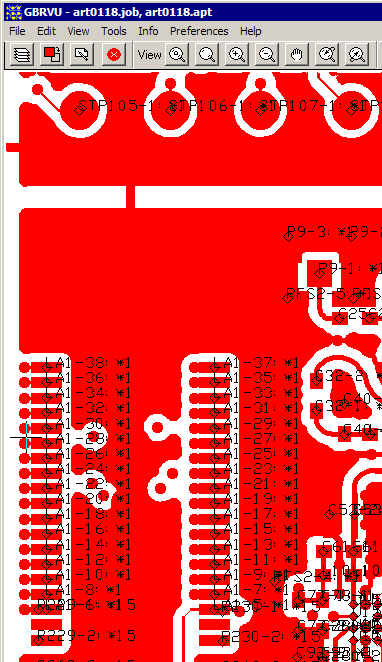

Here we show a portion of the PCB as displayed by GBRVU using the View Labels ... button. Netex-G generates the labels superimposed over the board layout.

It is a good idea to turn off all layers except the top and bottom in order to more clearly view the data.
