Extract Flash Center

One of Artwork's customers needed a utility to find the coordinates a flashes in a Gerber layout. The coordinate is used as a reference for correcting and aligning the rasterization of the CAD data to match the actual substrate. This is especially important for direct write applications since there are already features such as drill holes on the substrate to be imaged.

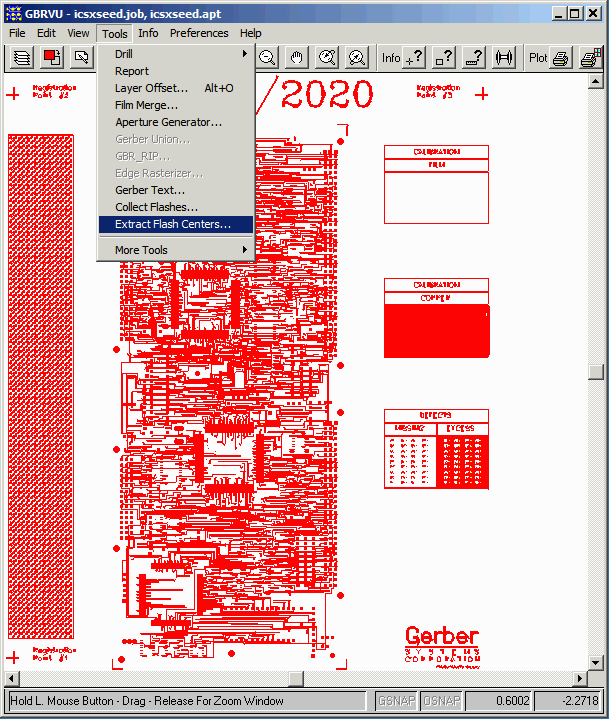

The function is accessed from the Tools pull down.

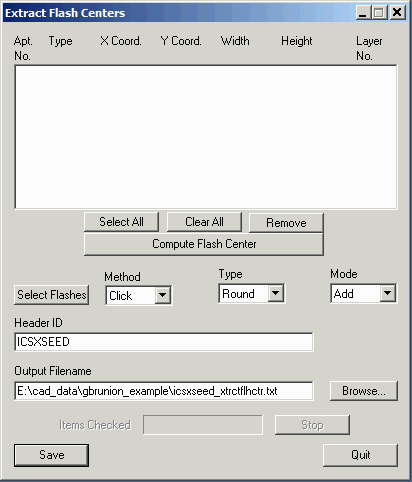

After clicking on Extract Flash Centers this dialog will open:

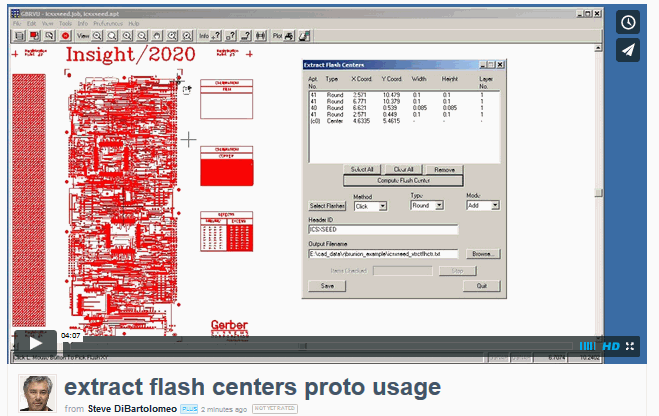

Video Tutorial

A short (04:00 mm:ss) video tutorial explains how to use the function.

https://vimeo.com/111162705




Download

The download link is here. You will need a password to unzip the prototype.

gbrvu_334_110614.proto.zip 27.4 MBytes
