Command Line Syntax

GBRComp can be run by calling its various modules from a script or command line. This is a bit complicated but this section will show how to go about constructing a proper batch file.



Getting a Batch File Prototype

The GBRComp GUI generates a batch file each time GBRComp is run. The user can arrange to create just the batch file and to save it by making the correct choices in the Preference Settings dialog.

If Create Batch File is checked, GBRComp will not actually execute the engine but just produce a batch file.

If Keep is checked, GBRComp will keep a batch file that was used to launch the engine instead of erasing it during the cleanup of temporary files.

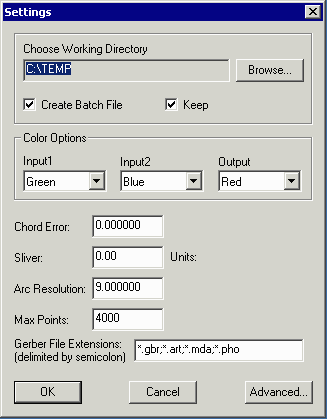

  GBRComp's Preferences Dialog


Below is a script generated by the GBRComp GUI and commented by hand. All comments begin with the # sign. Because the lines are so long, they have been broken for readability. A CRLF indicates that there is actually a carriage return line feed but CRLF is obviously not part of the batch file.

Set up the Messaging

"C:\WCAD\GBRVU\execdisplay.exe"
"-tcpinfo:C:\TEMP\gbrcomp_work$0\gbrcomp.tcp"  #port number
-startserver:4
"-prog:Comparing..."
"-stopfile:C:\TEMP\gbrcomp_work$0\$274xor_stoprun.$$$"
"-icon:C:\WCAD\GBRVU\gbrcomp.exe"
CRLF

"C:\WCAD\GBRVU\execdisplay.exe"
"-tcpinfo:C:\TEMP\gbrcomp_work$0\gbrcomp.tcp"
"-bgnstep:Interpreting First Gerber File"
-numops:2
CRLF

Convert the First Gerber file to GDS

"C:\WCAD\GBRVU\gbr2gdxx.exe"
"-cfg:C:\TEMP\gbrcomp_work$0\icsxseed_1.apt"  #created by rs247xjb.exe
"-out:C:\TEMP\gbrcomp_work$0\icsxseed_1_0.gds"
-f "\TEMP\gbrcomp_work$0\icsxseed_1.job"  #created by rs247xjb.exe
-s:1.000000  #scale factor
-we #use extents of the file for the data window
-mrgballs #graphics mode option
-silent #run in silent mode
"-tcpinfo:C:\TEMP\gbrcomp_work$0\gbrcomp.tcp"  #the tcp file to use
"-log:C:\TEMP\gbrcomp_work$0\gbrcomp_detail.log" #where to write (append) the log data
CRLF

Unionize the First GDS File

"C:\WCAD\GBRVU\boolw32f.exe"
"C:\TEMP\gbrcomp_work$0\icsxseed_1_0.gds"     # input created by gbr2gdxx
"C:\TEMP\gbrcomp_work$0\icsxseed_1_0u.gds"    # unionized output
TOP                                           # structure (always TOP)
1                                             # layer (always 1)
+1-2+3-4                                      # determined from job file
+nclip:1,100                                  # auto partitioning
-loutput                                      # leonov output polygons
-union                                        # union operation
-silent                                       # run in silent mode
"-tcpinfo:C:\TEMP\gbrcomp_work$0\gbrcomp.tcp" # where to find .tcp file
"-log:C:\TEMP\gbrcomp_work$0\gbrcomp_detail.log" # log file name to append to
CRLF

Messaging Control

"C:\WCAD\GBRVU\execdisplay.exe"
"-tcpinfo:C:\TEMP\gbrcomp_work$0\gbrcomp.tcp"
"-bgnstep:Interpreting Second Gerber File"
-numops:2
CRLF

Convert Second File to GDS

"C:\WCAD\GBRVU\gbr2gdxx.exe"
"-cfg:C:\TEMP\gbrcomp_work$0\icsx_mod_2.apt"
"-out:C:\TEMP\gbrcomp_work$0\icsx_mod_2_0.gds"
-f
"C:\TEMP\gbrcomp_work$0\icsx_mod_2.job"
-s:1.000000
-we
-mrgballs
-silent
"-tcpinfo:C:\TEMP\gbrcomp_work$0\gbrcomp.tcp"
"-log:C:\TEMP\gbrcomp_work$0\gbrcomp_detail.log"
CRLF

Boolean Second GDS

"C:\WCAD\GBRVU\boolw32f.exe"
"C:\TEMP\gbrcomp_work$0\icsx_mod_2_0.gds"
"C:\TEMP\gbrcomp_work$0\icsx_mod_2_0u.gds"
TOP
1
+1-2+3-4
+nclip:1,100
-loutput
-union
-silent
"-tcpinfo:C:\TEMP\gbrcomp_work$0\gbrcomp.tcp"
"-log:C:\TEMP\gbrcomp_work$0\gbrcomp_detail.log"
CRLF

Messaging Control

"C:\WCAD\GBRVU\execdisplay.exe"
"-tcpinfo:C:\TEMP\gbrcomp_work$0\gbrcomp.tcp"
"-bgnstep:Computing XOR"
-numops:3

COMBINE TWO GDS into ONE

"C:\WCAD\GBRVU\gdsfilte.exe"                      #gdsfilt engine
"C:\TEMP\gbrcomp_work$0\icsxseed_1_0u.gds"        # first file
"C:\TEMP\gbrcomp_work$0\icsxseed_1_0_shifted.gds" # name of shifted file
TOP                                               #structure (always TOP)
-lyr1:2                                           #remap layer 1 to 2
-unixcmdline
-gbrcomp
-silent
"-tcpinfo:C:\TEMP\gbrcomp_work$0\gbrcomp.tcp"
"-log:C:\TEMP\gbrcomp_work$0\gbrcomp_detail.log"
CRLF

"C:\WCAD\GBRVU\gdsfilte.exe"
"C:\TEMP\gbrcomp_work$0\icsxseed_1_0_shifted.gds"
"C:\TEMP\gbrcomp_work$0\xor_input_0.gds"
TOP
-unixcmdline
-add
"C:\TEMP\gbrcomp_work$0\icsx_mod_2_0u.gds"
-combine XOR_INPUT TOP
-gbrcomp
-silent
"-tcpinfo:C:\TEMP\gbrcomp_work$0\gbrcomp.tcp"
"-log:C:\TEMP\gbrcomp_work$0\gbrcomp_detail.log"
CRLF

Do the XOR Operation

"C:\WCAD\GBRVU\newxor.exe"
"C:\TEMP\gbrcomp_work$0\xor_input_0.gds"
"C:\TEMP\gbrcomp_work$0\diff_0.gds"
XOR_INPUT 3
+1x2
+nclip:1,100
-maxpts:4000
-sliver:0.00
-linput
-silent
"-tcpinfo:C:\TEMP\gbrcomp_work$0\gbrcomp.tcp"
"-log:C:\TEMP\gbrcomp_work$0\gbrcomp_detail.log"

Scans GDS XOR OUTPUT to create Summary

"C:\WCAD\GBRVU\gscan.exe"
"C:\TEMP\gbrcomp_work$0\diff_0.gds"
-sh
-sea
"-o:diff_0.ssn"
CRLF

Messaging

"C:\WCAD\GBRVU\execdisplay.exe"
"-tcpinfo:C:\TEMP\gbrcomp_work$0\gbrcomp.tcp"
"-bgnstep:Creating XOR Output"
-numops:1

CONVERT BACK TO GERBER


"C:\WCAD\GBRVU\g2gbreng.exe"
"C:\TEMP\gbrcomp_work$0\diff_0.gds"
x
1.0
3
1.000000
TOP
-p
"-cfg:C:\TEMP\gbrcomp_work$0\diff_0.cfg"
-silent
"-tcpinfo:C:\TEMP\gbrcomp_work$0\gbrcomp.tcp"
"-log:C:\TEMP\gbrcomp_work$0\gbrcomp_detail.log"
CRLF

PUT A RS274X Header on the GERBER Output

"C:\WCAD\GBRVU\274hdr.exe"
TOP03.gbr
"-cfg:C:\TEMP\gbrcomp_work$0\diff_0.apt"
-s:1.000
CRLF

Cleanup Temporary Files

"C:\WCAD\GBRVU\execdisplay.exe"
"-tcpinfo:C:\TEMP\gbrcomp_work$0\gbrcomp.tcp" "-stopserver"
CRLF

"C:\WCAD\GBRVU\chklogs.exe"
"C:\TEMP\gbrcomp_work$0\gbrcomp_detail.log"
-shortlog
-silent
"-append:C:\TEMP\gbrcomp_errors.log"
CRLF

"C:\WCAD\GBRVU\batutil.exe"
"C:\TEMP\output\diff.gbr"
TOP03.gbr
-copy
CRLF

"C:\WCAD\GBRVU\batutil.exe"
"-infiles:C:\TEMP\gbrcomp_work$0\filelist.txt"
-remove
CRLF

"C:\WCAD\GBRVU\batutil.exe"
"C:\TEMP\gbrcomp_work$0\filelist.txt"
-remove
CRLF
