QisMMRtcr Extension

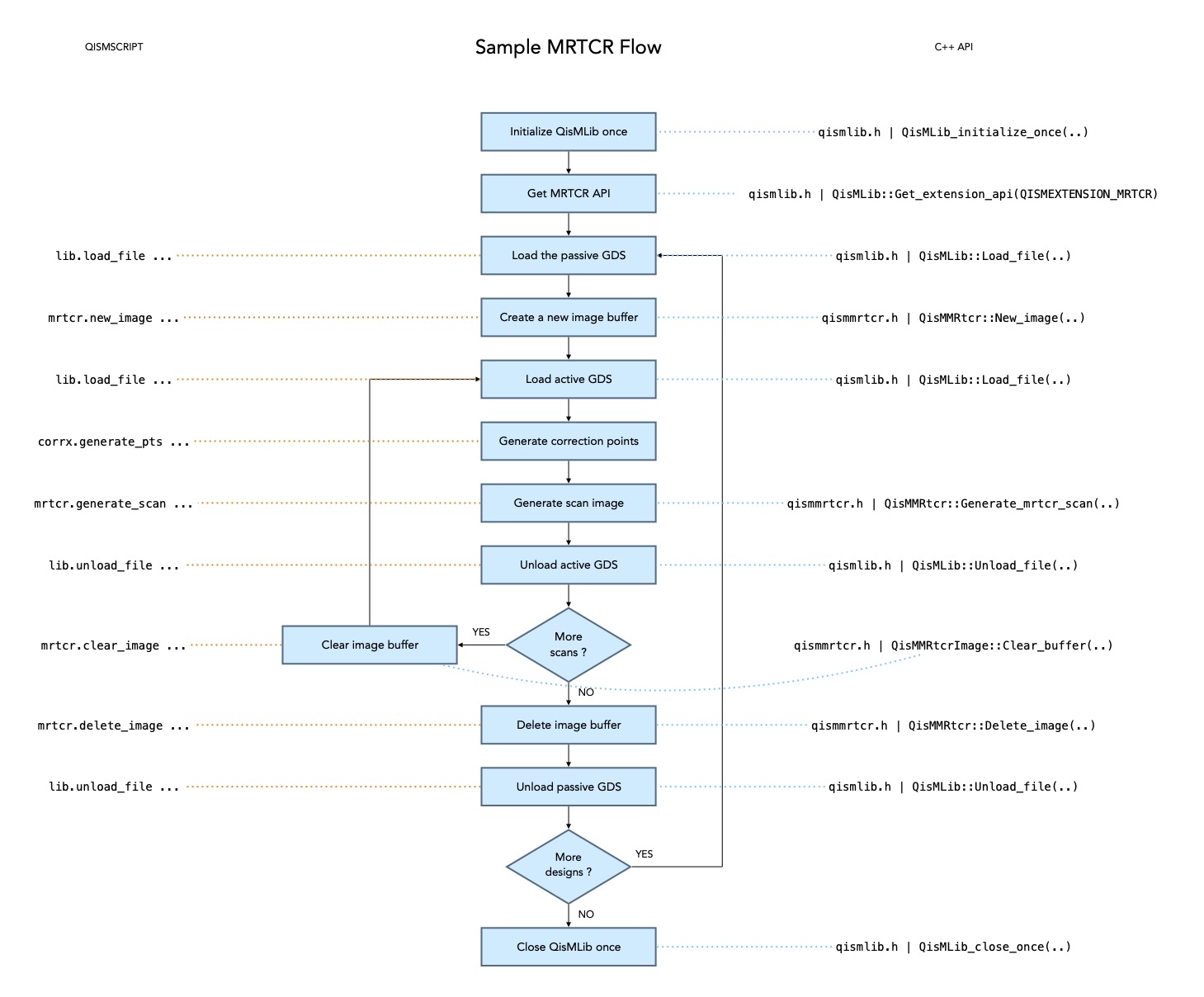

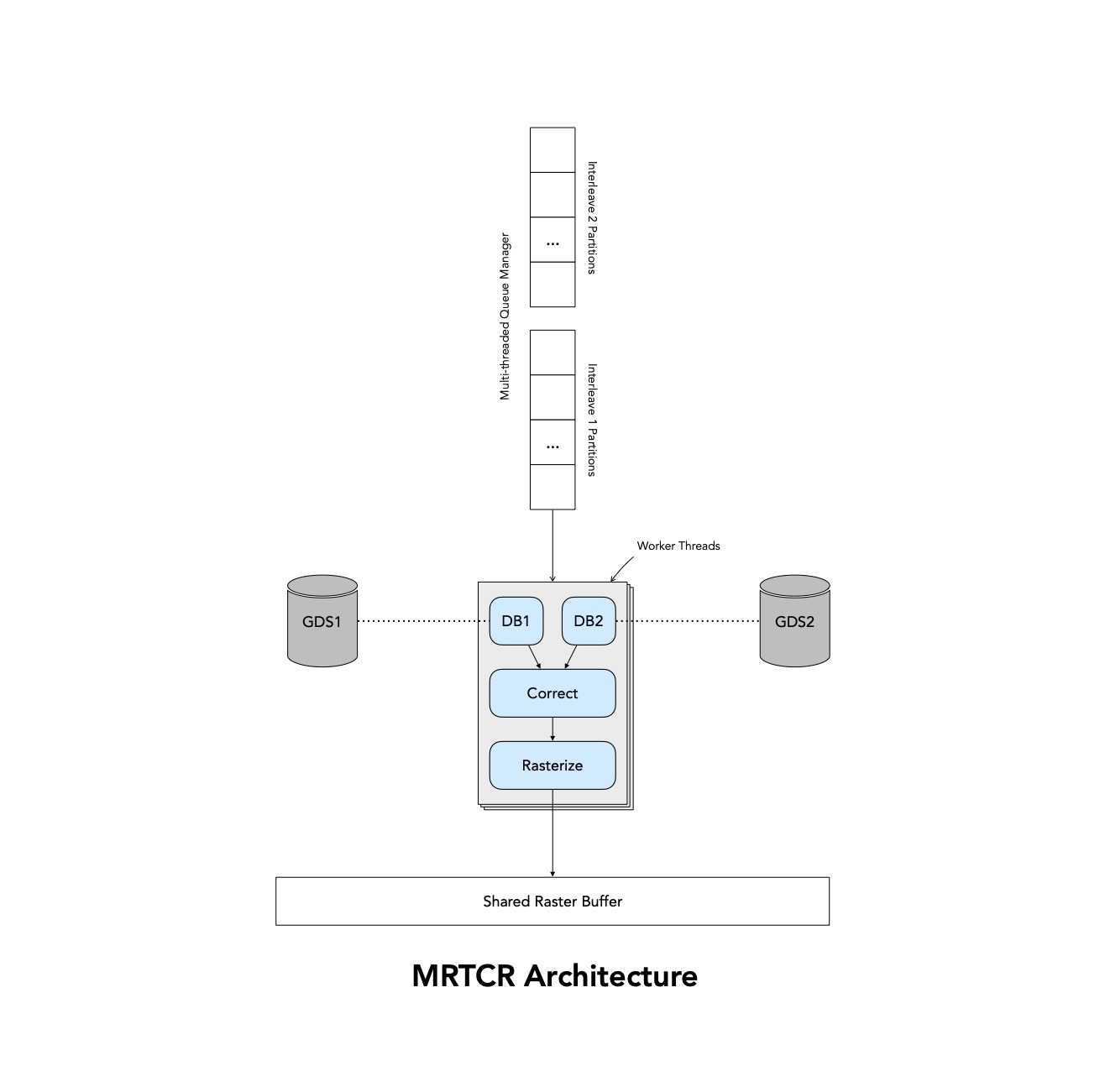

• A QisMLib extension to -- generate a raster image from a view of two databases - one that represents passive data and another that represents active data with or without bi-linear corrections. The extension provides a convinience API and script commands to --

  • Fetch polygons from both the databases for a given ROI

  • Apply bi-linear corrections

  • Rasterize the corrected polygons to an image buffer

  • Use multi-threading for optimal performance

• Can be used via the C++ API or the QisMLib scripting system

Notes on Performance

Long, Large or Complex boundaries

• MRTCR will work best when the source GDSII files (passive or active) do not have the following --

  • Very long polygons (paths or boundaries) that cross an entire scan or even multiple scans

  • Very large polygons whose areas span an entire scan or even multiple scans

  • Complex polygons that have large number of vertices and/or complex contours

• It is best to convert such polygons into smaller and simplified boundaries during a pre-processing step so that the GDSII files being used for MRTCR is more raster-friendly

• A good measure of how big these boundaries should be is the approximate area processed by each MRTCR worker thread

  • Area / Thread = (Width of Scan / No. Threads) * Height of Scan

Special handling of small rectangles (as PATHs)

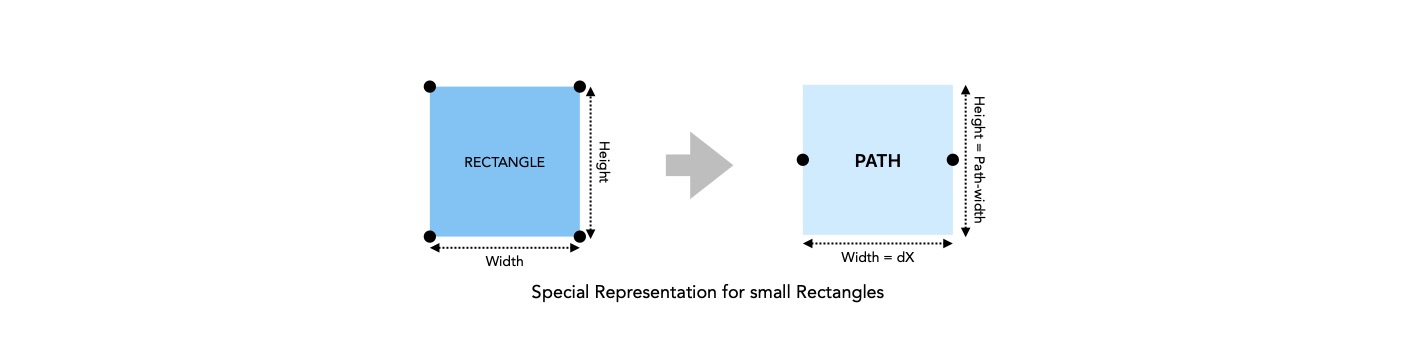

• MRTCR has some optimizations for rectangles (in passive or active data) that are small enough that the distortion from within such a rectangle can be ignored. i.e It is sufficient to translate the entire rectangle based on the correction computed at a single vertex

• Also, the rasterizer can avoid some unnecessary computations if it knows upfront that the polygon being fed is a rectangle

• In order to trigger these optimizations, the source GDSII data (passive and/or active) should represent such rectangles as 2-point horizontal PATHs. The dx of the two vertices provides the rectangle-width and the PATH-width provides the rectangle-height

• The OPT_PATHS_PSSV and OPT_PATHS_ACTV control parameters can be used to enable/disable this mode. By default, it is enabled

• If this mode is enabled, ALL OTHER KINDS OF PATH DATA WILL BE IGNORED. Therefore, the source GDSII should not have any PATH data other than the ones that represent small rectangles

Presence of other kinds of PATHs

• It's best to convert PATHs (that are not meant to represent small rectangles) to boundaries during a pre-processing step

• If this is not possible, the special processing of small rectangles MUST BE DISABLED. i.e OPT_PATHS_PSSV and/or OPT_PATHS_ACTV must be set to 0 (by default, they are both 1/ON)

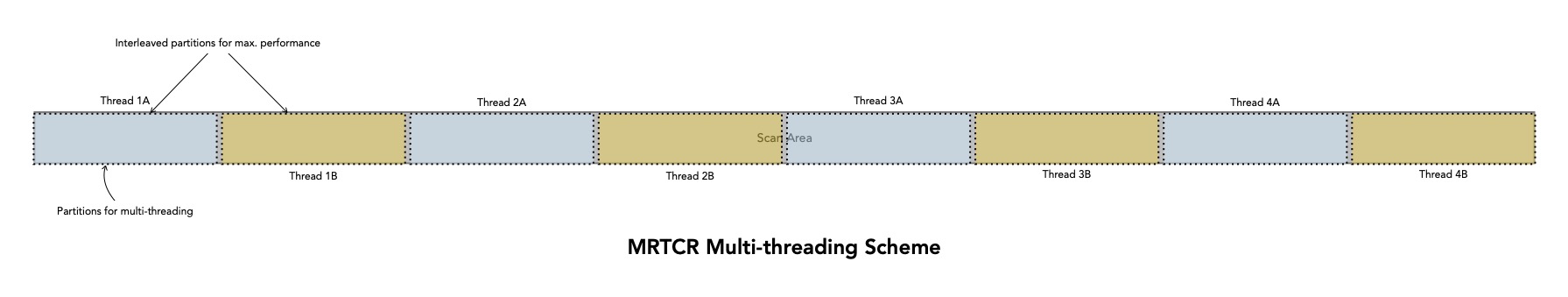

Sub-scan data partitioning

• At the moment, MRTCR assumes that each image (scan) is a very long horizontal stripe (width >>> height)

• Therefore, for purposes of multi-threading, it partitions the scan area only horizontally. This makes it unsuitable for use with applications where the scans are vertical (height >>> width) or even uniform rectangles (height ~= width)

• Please contact Artwork if this assumption is contrary to your application needs

QisMMRtcr C++ API (qismmrtcr.h)

QisMMRtcrOpts

• Represents an object to hold optional MRTCR control parameters

class QisMMRtcrOpts { ... };

Enum Type

• Represents various control parameter types

• These integer codes are to be used with Set_opt and Get_opt

xxxxxxxxxx
enum Type
{
  OPT_PSSV_CELL=1 /* Set the view cell for passive data
  * Default: The deepest top cell of the passive db is used
  * For Set_opt, **MUST** be followed by one `const char*` representing a valid cellname
  * For Get_opt, **MUST** be followed by one address of `const char*` to retrieve the cellname
  */
  ,OPT_ACTV_CELL /* Set the view cell for active data
  * Default: The deepest top cell of the active db is used
  * For Set_opt, **MUST** be followed by one `const char*` representing a valid cellname
  * For Get_opt, **MUST** be followed by one address of `const char*` to retrieve the cellname
  */
  ,OPT_PSSV_LAYERS /* Set a list of layers for passive data
  * Default: ALL layers of the passive db are used
  * For Set_opt, **MUST** be followed by one `const char*` representing a valid layer-string ("ALL" or a comma-separated list of layers)
  * For Get_opt, **MUST** be followed by one address of `const char*` to retrieve the layer-string
  */
  ,OPT_ACTV_LAYERS /* Set a list of layers for active data
  * Default: ALL layers of the active db are used
  * For Set_opt, **MUST** be followed by one `const char*` representing a valid layer-string ("ALL" or a comma-separated list of layers)
  * For Get_opt, **MUST** be followed by one address of `const char*` to retrieve the layer-string
  */
  ,OPT_CORRX_PSSV /* Enable/Disable corrections for passive data
  * Default: Corrections are ON/enabled (1) for passive data
  * For Set_opt, **MUST** be followed by one `int` -- 1 (ON) or 0 (OFF)
  * For Get_opt, **MUST** be followed by one address of `int` to retrieve the ON/OFF value
  */
  ,OPT_CORRX_ACTV /* Enable/Disable corrections for active data
  * Default: Corrections are ON/enabled (1) for active data
  * For Set_opt, **MUST** be followed by one `int` -- 1 (ON) or 0 (OFF)
  * For Get_opt, **MUST** be followed by one address of `int` to retrieve the ON/OFF value
  */
  ,OPT_CORRX_PSSV_FULL /* Enable/Disable all-point corrections for passive data
  * Default: 1 (ON), all vertices of passive data are subjected to corrections
  * If [special processing for paths](#OPT_PATHS_PSSV) is enabled, they are only subjected to 1-pt corrections regardless of this setting
  * For Set_opt, **MUST** be followed by one `int` -- 1 (ON) or 0 (OFF)
  * For Get_opt, **MUST** be followed by one address of `int` to retrieve the ON/OFF value
  */
  ,OPT_CORRX_ACTV_FULL /* Enable/Disable all-point corrections for active data
  * Default: 0 (OFF), active data is only subjected to 1-pt corrections
  * If [special processing for paths](#OPT_PATHS_PSSV) is enabled, they are only subjected to 1-pt corrections regardless of this setting
  * For Set_opt, **MUST** be followed by one `int` -- 1 (ON) or 0 (OFF)
  * For Get_opt, **MUST** be followed by one address of `int` to retrieve the ON/OFF value
  */
  ,OPT_THRNUM /* Set the number of threads to be used
  * This also determines how many licenses will be used
  * Default: 0 implies no. cpu(s) in the system
  * For Set_opt, **MUST** be followed by one `int` representing the no. threads to be used
  * For Get_opt, **MUST** be followed by one address of `int` to retrieve the no. threads
  */
  ,OPT_RESOLUTION /* Set the raster image resolution
  * For Set_opt, **MUST** be followed by three `double` representing X-res, Y-res and units in meters
  * For Get_opt, **MUST** be followed by three addresses of `double` to retrieve X-res, Y-res and units in meters
  * units < 0.0 implies DPI. units > 10.0 implies DBU. Otherwise it implies pixel width/height in meters
  * Default: 1,1 um
  */
  ,OPT_IMG_INVERT /* Invert image polarity
  * Default: 0 (OFF), positive polarity - black (1) data on a white (0) background
  * For Set_opt, **MUST** be followed by one `int` -- 1 (ON) or 0 (OFF)
  * For Get_opt, **MUST** be followed by one address of `int` to retrieve the ON/OFF value
  */
  ,OPT_IMG_R2L /* Change raster direction along X (mirror about Y)
  * Default: 0 (WYSIWYG)
  * For Set_opt, **MUST** be followed by one `int` -- 1 (ON) or 0 (OFF)
  * For Get_opt, **MUST** be followed by one address of `int` to retrieve the ON/OFF value
  */
  ,OPT_IMG_B2T /* Change raster direction along Y (mirror about X)
  * Default: 0 (WYSIWYG)
  * For Set_opt, **MUST** be followed by one `int` -- 1 (ON) or 0 (OFF)
  * For Get_opt, **MUST** be followed by one address of `int` to retrieve the ON/OFF value
  */
  ,OPT_IMG_DITHER /* Set the (8x8 Bayer Matrix) dithering value (0.0 - 1.0)
  * Default: 1.0
  * For Set_opt, **MUST** be followed by one `double` representing the dither value
  * For Get_opt, **MUST** be followed by one address of `double` to retrieve the dither value
  */
  ,OPT_IMGOUT /* Set the path and format for writing the image to disk
  * For Set_opt, **MUST** be followed by one `int` representing the image format (`QisMRasterFlags::ImageFormat`) followed by one `const char*` representing the output path
  * For Get_opt, **MUST** be followed by address of `int` and `const char*` to retrieve the format and path respectively
  * Default: No writing to disk
  */
  ,OPT_GDSOUT /* Set the path for generate GDSII containing the data processed for a scan
  * Default: No output GDSII
  * For Set_opt, **MUST** be followed by `const char*` representing output GDSII path
  * For Get_opt, **MUST** be followed by address of `const char*` to retrieve output GDSII path
  */
  ,OPT_GDSOUT_SRC /* Enable/Disable writing source data to the GDSII output
  * Default: Do not write source polygons
  * For Set_opt, **MUST** be followed by one `int` representing the target datatype for source polygons
  * For Get_opt, **MUST** be followed by one address of `int` to retrieve the target datatype for source polygons
  */
  ,OPT_PATHS_PSSV /* Enable/Disable special processing for passive PATHs
  * If enabled, tiny rectangular boxes are represented as 2-pt PATHs in the data. These boxes are corrected and rasterized differently for improved performance
  * If enabled, **Any other kind of PATHs will be ignored**
  * If disabled, all PATHs will be converted to boundaries before processing
  * Default: 1 (ON)
  * For Set_opt, **MUST** be followed by one `int` -- 1 (ON) or 0 (OFF)
  * For Get_opt, **MUST** be followed by one address of `int` to retrieve the ON/OFF value
  */
  ,OPT_PATHS_ACTV /* Enable/Disable special processing for active PATHs
  * If enabled, tiny rectangular boxes are represented as 2-pt PATHs in the data. These boxes are corrected and rasterized differently for improved performance
  * If enabled, **Any other kind of PATHs will be ignored**
  * If disabled, all PATHs will be converted to boundaries before processing
  * Default: 1 (ON)
  * For Set_opt, **MUST** be followed by one `int` -- 1 (ON) or 0 (OFF)
  * For Get_opt, **MUST** be followed by one address of `int` to retrieve the ON/OFF value
  */
  ,OPT_ANY_LIC /* Enable/Disable working with any number of licenses available
  * The number of licenses required are determined by OPT_THRNUM. By default, if MRTCR is not able to fetch the exact requested no. licenses, it will result in failure
  * By enabling this control, a more relaxed license policy is used. Any no. of available licenses (less than or equal to requested) will be used albeit at the cost of reduced number of threads
  * Default: 0 (OFF - strict policy)
  * For Set_opt, **MUST** be followed by one `int` -- 1 (ON) or 0 (OFF)
  * For Get_opt, **MUST** be followed by one address of `int` to retrieve the ON/OFF value
  */
};

Version control (QisMMRtcrOpts)

• Cast to a pointer of another version in the class hierarchy (base/derived)

• Get the latest version number. Version numbers start at 1 and are reflected in the class name using the suffix V<number>. E.g <baseclass>V<version>

• The topmost base class is version 1 (V1 implied)

• The cast returns NULL if a version number is not recognized/implemented

xxxxxxxxxx
static const char* Class_name() { return "QisMMRtcrOpts"; }
virtual const char* QisMMRtcrOpts_name(const int version) const = 0;
virtual void* QisMMRtcrOpts_cast(const int version) = 0;
virtual const void* QisMMRtcrOpts_cast(const int version) const = 0;
virtual int QisMMRtcrOpts_latest_version() const = 0;

Set_opt

Get_opt

• Set or Get the values associated with a specific control parameter

• type is the code associated with the parameter in question

• Returns true if the type is supported

• See here for information about each parameter, it's use and default values

xxxxxxxxxx
virtual bool Set_opt(const int type, ...) = 0;
virtual bool Get_opt(const int type, ...) const = 0;

Reset

• Reset all settings to default values

• See here for information about each parameter, it's use and default values

xxxxxxxxxx
virtual void Reset() = 0;

Copy

• Copy settings from another object

• Returns true if handle is valid

xxxxxxxxxx
virtual bool Copy(const QisMMRtcrOpts* handle) = 0;

QisMMRtcrImage

• Represents a raster image generated by QisMMRtcr held in memory buffer

xxxxxxxxxx
class QisMMRtcrImage { ... };

Version control (QisMMRtcrImage)

• Cast to a pointer of another version in the class hierarchy (base/derived)

• Get the latest version number. Version numbers start at 1 and are reflected in the class name using the suffix V<number>. E.g <baseclass>V<version>

• The topmost base class is version 1 (V1 implied)

• The cast returns NULL if a version number is not recognized/implemented

xxxxxxxxxx
static const char* Class_name() { return "QisMMRtcrImage"; }
virtual const char* QisMMRtcrImage_name(const int version) const = 0;
virtual void* QisMMRtcrImage_cast(const int version) = 0;
virtual const void* QisMMRtcrImage_cast(const int version) const = 0;
virtual int QisMMRtcrImage_latest_version() const = 0;

Bytes_per_row

• The the image width in bytes

xxxxxxxxxx
virtual int Bytes_per_row() const = 0;

Px_per_row

Px_per_col

• Get the number of pixels per row (image width) and per column (image height)

xxxxxxxxxx
virtual int Px_per_row() const = 0;
virtual int Px_per_col() const = 0;

Bytes_total

• Get the image size in bytes

xxxxxxxxxx
virtual long long Bytes_total() const = 0;

Buffer_ptr

• Access the buffer memory directly

xxxxxxxxxx
virtual const unsigned char* Buffer_ptr() const = 0;

Get_data_extents

• Get the extents of the image in data space (user units)

• lx..uy are addresses of double(s) to receive the minx..maxy values

• Returns true (always)

xxxxxxxxxx
virtual bool Get_data_extents(double* lx, double* ly, double* ux, double* uy) const = 0;

Get_img_extents

• Get the extents of the image in quantized space

• lx..uy are addresses of int(s) to receive the minx..maxy values

• Returns true (always)

xxxxxxxxxx
virtual bool Get_img_extents(int* lx, int* ly, int* ux, int* uy) const = 0;

Clear_buffer

• Reset all the pixels in the image buffer

• nt is the no. threads (>0) to be used

• invert if true sets the buffer pixels to 1s

• start_row (if within range) and n_rows (if within range) can be used to clear the buffer partially

xxxxxxxxxx
virtual void Clear_buffer(const int nt, const bool invert, const int start_row = 0, const int n_rows = 0) = 0;

QisMMRtcr

• Primary interface to use the QisMMRtcr extension

xxxxxxxxxx
class QisMMRtcr: public NsQisMLib::QisMExtensionAPI { ... };

Version control (QisMMRtcr)

• Cast to a pointer of another version in the class hierarchy (base/derived)

• Get the latest version number. Version numbers start at 1 and are reflected in the class name using the suffix V<number>. E.g <baseclass>V<version>

• The topmost base class is version 1 (V1 implied)

• The cast returns NULL if a version number is not recognized/implemented

xxxxxxxxxx
static const char* Class_name() { return "QisMMRtcr"; }
virtual const char* QisMMRtcr_name(const int version) const = 0;
virtual void* QisMMRtcr_cast(const int version) = 0;
virtual const void* QisMMRtcr_cast(const int version) const = 0;
virtual int QisMMRtcr_latest_version() const = 0;

Get_error_msg

Get_error_tag

Get_error_context

• Get information about an error condition represented by code

• Error message is a detailed message for a human operator

• Error Tag is a string that represents the category of the error condition (See class QisMError in qismbase.h for the various types)

• Error context is reserved for internal/special use

xxxxxxxxxx
virtual const char* Get_error_msg(const int code) const = 0;
virtual const char* Get_error_tag(const int code) const = 0;
virtual const char* Get_error_context(const int code) const = 0;

New_opts

Delete_opts

• Create or destroy an object to hold optional control parameters

• See here for details

• Every such object MUST be eventually destroyed using Delete_opts to avoid memory leak

xxxxxxxxxx
virtual QisMMRtcrOpts* New_opts() = 0;
virtual void Delete_opts(QisMMRtcrOpts* handle) = 0;

New_image

Delete_image

• Create or destroy a buffer to hold a raster image (image object)

• roi (must be valid) are the extents of the data (from both db(s)) to be processed. I.e roi is the extents of the image in data space

  • This is only used as a guide to determine the buffer size. The actual data extents will be used during Generate_mrtcr_scan

  • For use with multiple scans, specify an ROI that's big enough to hold a little more than the largest of such scans

• opts is a handle to additional (optional) control parameters

• units_m and grid_m are the source data units and grid in meters (e.g 1e-6 and 1e-9 for a um file with nm resolution)

• ecode is a buffer to retrieve the error code (if this operation fails)

• On success, returns a handle (!= NULL) to a new empty image object. Otherwise, use Get_error_* with the return code to get error details

• The newly created image will be blank and ready to use. Therefore, there is no need to do a separate Clear_buffer on this image before the first use

• This image object MUST be eventually destroyed using Delete_image to avoid resource leaks

• Requires a license. See license policy

xxxxxxxxxx
virtual QisMMRtcrImage* New_image(
  const NsQisMLib::QisMWindow& roi, const QisMMRtcrOpts* opts,
  const double units_m, const double grid_uu, int* ecode
  ) = 0;
virtual void Delete_image(QisMMRtcrImage* handle) = 0;

Generate_mrtcr_scan

• Generate a monochrome raster image (1bpp) by collecting polygons from a passive db, optionally an active db; with corrections if specified

• image will reference the raster image on successful return. At the time of the call, if image already points to any existing raster image, the existing image buffer will be re-used (as long as it big enough to hold the new image)

• passive_db is a handle to a valid db representing passive data. This cannot be NULL

• active_db (if not NULL) is a handle to a valid db representing active data. If NULL, only data from passive_db will be processed

• Both passive and active db(s) MUST have the same units and grid

• roi (must be valid) are the extents of the data (from both db(s)) to be processed. I.e roi is the extents of the image in data space

• correction_pts (if not NULL) is a set of measured points for applying bi-linear distortion to the source data. Each correction point is represented by FOUR numbers -- {x},{y},{dx},{dy} where {dx},{dy} is the measured distortion at {x},{y}. These values are in the user units (data space)

• n_pts is the number of points in correction_pts. No. values in correction_pts is equal to n_pts * 4

• opts is a handle to additional (optional) control parameters

• Returns 0 on success. Otherwise, use Get_error_* with the return code to get error details

• On success, image will point to the raster image object. That object can be re-used for the next scan. Eventually, it MUST be explicitly destroyed using Delete_image to avoid resource leak. Note --

  • If the re-used buffer is not enough to hold the new image, it will be automatically destroyed and a new buffer will be allocated internally in it's place

  • This way, image will always point to the output raster image whether or not the buffer was re-used

• This operation will require a license ONLY IF an existing image buffer was not specified. I.e *image == NULL at the time of this call

xxxxxxxxxx
virtual int Generate_mrtcr_scan(
  QisMMRtcrImage** image,
  NsQisMLib::QisMFile* passive_db, NsQisMLib::QisMFile* active_db,
  const NsQisMLib::QisMWindow& roi, const double* correction_pts, const int n_pts,
  const QisMMRtcrOpts* opts
  ) = 0;

QisMMRtcr Commands

Commands to use the QisMMRtcr extension within the QisMLib scripting system

• See qismmrtcr.h for the corresponding C++ api

• Some commands require a license

mrtcr.scan_info

xxxxxxxxxx
mrtcr.scan_info
  str={path};{minx},{miny},{maxx},{maxy}
  &file={var}
  &roi={var}

• Split a string formatted as {file_path};{minx},{miny},{maxx},{maxy} into two components -- {file_path} and ROI {minx},..{maxy}

• &file= and &roi= if specified will create new string variables where the component values will be stored

• This is just a utility commands to be used while reading a text file containing a list of scans, each composed of the active file path and ROI

mrtcr.new_opts

xxxxxxxxxx
mrtcr.new_opts
  &opts={id}
  [cell={P | A},{name}]
  [layers={P | A},{str}]
  [!corrx={P | A}]
  [{+ | -}corrx={P | A}]
  [thrnum={n}]
  [resolution={x},{y},{m|cm|mm|um|nm|in|mils|dpi|dbu}]
  [format={path},{TIF | BMP | RAW | TIF8}]
  [gds={path}[,{src}]]
  [dither={value}]
  [nopaths={P | A}]
  [anylic]

• Create an object to hold optional control parameters

• &opts={id} specifies name of a variable (type QisMMRtcrOpts) to be associated with the newly created object

• cell= specifies the view cell for either P (passive) or A (active) db(s). By default, the deepest top cell is used

• layers= specifies view layers for either P (passive) or A (active) db(s). By default, all layers are used

• !corrx= disables corrections for P (passive) or A (active) db(s). By default, corrections are enabled for both

• +corrx= enables all-point corrections for P (passive) or A (active) db(s). -corrx= enables 1-pt corrections for either db(s). By default, +corrx=P and -corrx=A

• thrnum={n} specifies the no. threads (also no. licenses) to be used

• resolution= specifies the image resolution along X and Y followed by the units. If resolution is not specified, polygons will not be rasterized

• format= if used creates an image file on disk at the specified {path} in one of the specified file formats

• gds= if used creates a GDSII file on disk at the specified {path} containing polygons that were rasterized (after corrections). If {src} is specified, it represents the datatype where the original polygons will also be written

• dither= specifies the dithering value (default 1.0)

• nopaths= converts all paths to boundaries before processing for P (passive) or A (active) databases

• invert if specified reverses the image polarity (makes 0/white data on 1/black background)

• anylic if specified will enable working with any number of licenses available even if less than requested. By default, any less than requested number of licenses is considered an error

• Every such object MUST be eventually destroyed using mrtcr.delete_opts to avoid memory leak

mrtcr.delete_opts

xxxxxxxxxx
mrtcr.delete_opts
  $opts={id}

• Destroy the control parameters object associated with the variable {id} (type QisMMRtcrOpts)

mrtcr.new_image

xxxxxxxxxx
mrtcr.new_image
  &img={id}
  roi={minx}..{maxy}
  $opts={id}
  units={units_m},{grid_m} [anylic]

• Create a buffer to hold a raster image (image object)

• roi (must be valid) are the extents of the data (from both db(s)) to be processed. I.e roi is the extents of the image in data space

  • This is only used as a guide to determine the buffer size. The actual data extents will be used during mrtcr.generate_scan

  • For use with multiple scans, specify an ROI that's big enough to hold a little more than the largest of such scans

• $opts={id} is name of a variable (type QisMMRtcrOpts) representing additional (optional) control parameters

• {units_m} and {grid_m} are the source data units and grid in meters (e.g 1e-6 and 1e-9 for a um file with nm resolution)

• On success, creates a new variable (type QisMMRtcrImage) named {id} of &img associated with a new empty image object

• The newly created image will be blank and ready to use. Therefore, there is no need to do a separate mrtcr.clear_image on this image before the first use

• This image object MUST be eventually destroyed using mrtcr.delete_image to avoid resource leaks

• Requires a license. See license policy

mrtcr.delete_image

xxxxxxxxxx
mrtcr.delete_image
  $img={id}

• Destroy an image object represented by the variable named {id} (type QisMMRtcrImage) and free any associated licenses

mrtcr.clear_image

xxxxxxxxxx
mrtcr.clear_image
  $img={id}
  [thrnum={nt}]
  [invert]

• Reset all the pixels in the image buffer

• $img={id} is the name of a variable (type QisMMRtcrImage) associated with the image to be cleared

• thrnum={nt} is the no. threads (>0) to be used

• invert if specified sets the buffer pixels to 1s

mrtcr.generate_scan

xxxxxxxxxx
mrtcr.generate_scan
  $passive={id}
  roi={minx}..{maxy}
  *img={id}
  [$active={id}]
  [$opts={id}]
  [corrx={x},{y},{dx},{dy}..]

• Generate a monochrome raster image (1bpp) by collecting polygons from a passive db, optionally an active db; with corrections if specified

• $passive={id} is the name of a variable (type QisMFile*) associated with the db representing passive data

• roi (must be valid) are the extents of the data (from both db(s)) to be processed. I.e roi is the extents of the image in data space

• $active={id} (if specified) is the name of a variable (type QisMFile*) associated with the db representing active data

• Both passive and active db(s) MUST have the same units and grid

• *img={id} is the name of a variable (type QisMMRtcrImage) to be associated with the raster image on successful return. At the time of the call, if {id} already references an existing raster image, the existing image buffer will be re-used (as long as it big enough to hold the new image)

• corrx={x},{y},{dx},{dy} (if specified) is a set of measured points for applying bi-linear distortion to the source data. Each correction point is represented by FOUR numbers -- {x},{y},{dx},{dy} where {dx},{dy} is the measured distortion at {x},{y}. These values are in the user units (data space)

• $opts={id} is name of a variable (type QisMMRtcrOpts) to additional (optional) control parameters

• On success, *img={id} will point to the raster image object. That object can be re-used for the next scan. Eventually, it MUST be explicitly destroyed using mrtcr.delete_image to avoid resource leak. Note --

  • If the re-used buffer is not enough to hold the new image, it will be automatically destroyed and a new buffer will be allocated internally in it's place

  • This way, *img={id} will always point to the output raster image whether or not the buffer was re-used

• This operation will require a license ONLY IF an existing image buffer was not specified. I.e {id} of *img does not exist at the time of this call

QisMMRtcr Licensing (API)

• Product name : QisMMRtcr

• License code : 11303

• Acquire : During New_image depending on the no. of threads requested (QisMMRtcrOpts::OPT_THRNUM)

• Release : During Delete_image, all the licenses that were held are released at once

• Policy : Depending on QisMMRtcrOpts::OPT_ANY_LIC, either all of the requested licenses MUST be available to proceed or any number of available licenses can be used

QisMMRtcr Licensing (Script)

• Product name : QisMMRtcr

• License code : 11303

• Acquire : During mrtcr.new_image depending on the no. of threads requested (thrnum={n})

• Release : During mrtcr.delete_image, all the licenses that were held are released at once

• Policy : Depending on anylic option, either all of the requested licenses MUST be available to proceed or any number of available licenses can be used

QisMMRtcr Version History

qismmrtcr dll/so v1.0 04-2023

• First cut
