Converting GreyScale TIFF to a Multi-Layer GDSII

Some years ago a special glass substrate was developed by a company (Canyon Materials) that was coated (or possibly diffused) with a material whose optical transparency changed when a certain amount of heat was applied. By means of multiple laser passes they were able to create gray scale masks.

The input to the specialized mask writer was GDSII and it mapped each gray level to a different GDSII layer. Artwork developed an output of our TIFF2MEBES to support this device. It may be of use to others.

How it Works

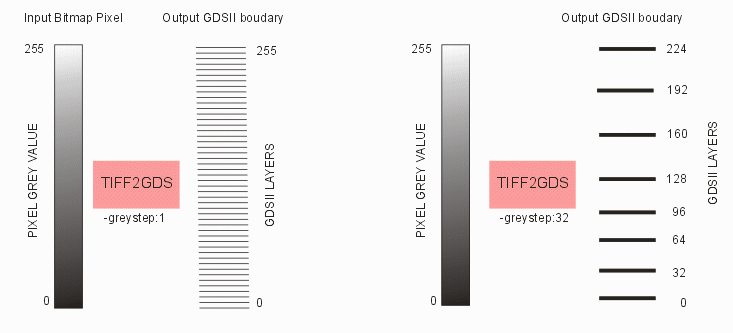

Each pixel in the TIFF input file is treated as a tiny square (user defined.) This square is mapped to a GDSII layer based on its gray scale value. While normally this would produce 256 layers in GDSII one can enter a parameter that defines the "distance" between values for mapping purposes i.e. a threshold. This is best explained in the illustration below:

grey step control

Example

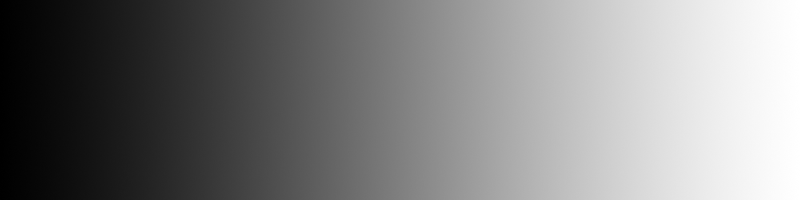

We start with a grey scale tiff image that ranges from completely black to white (generated using Photoshop's gradient tool ...)

grey bar

We can convert this to GDSII with the following command line:


c:\wcad\tiff2mebes\tiff2mebes.exe     program

 -gds                                 output gdsii

   -pixel:1                           each pixel = 1 um

     -greystep:1                       steps between levels = 1

       grey_bar.tif                   input file

         grey_bar_GS1.gds             output file

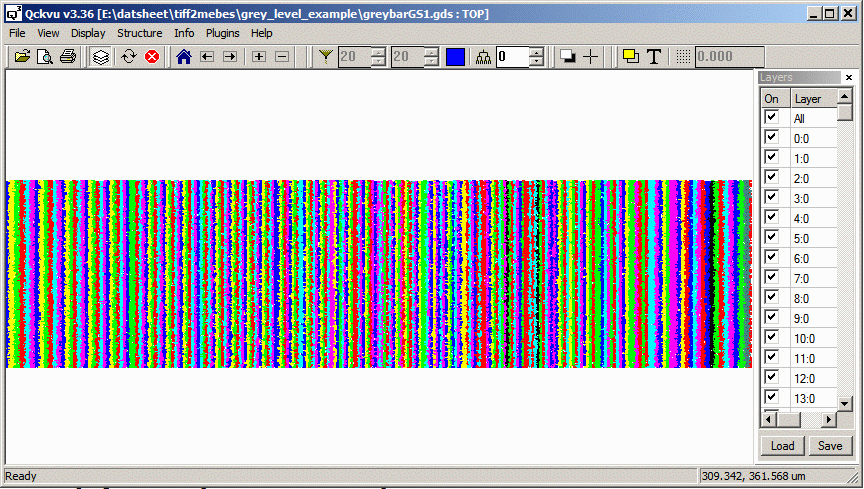

Here is what the GDSII file looks like: (false color)

gdsii from tiff with greystep=1


Suppose we can't really use the full 256 levels. Our requirement only needs 8 levels. Then we can set greystep:32 and have multiple input levels compressed into a few GDSII layers.


c:\wcad\tiff2mebes\tiff2mebes.exe     program

 -gds                                 output gdsii

   -pixel:1                           each pixel = 1 um

     -greystep:32                       steps between levels = 1

       grey_bar.tif                   input file

         grey_bar_GS32.gds             output file

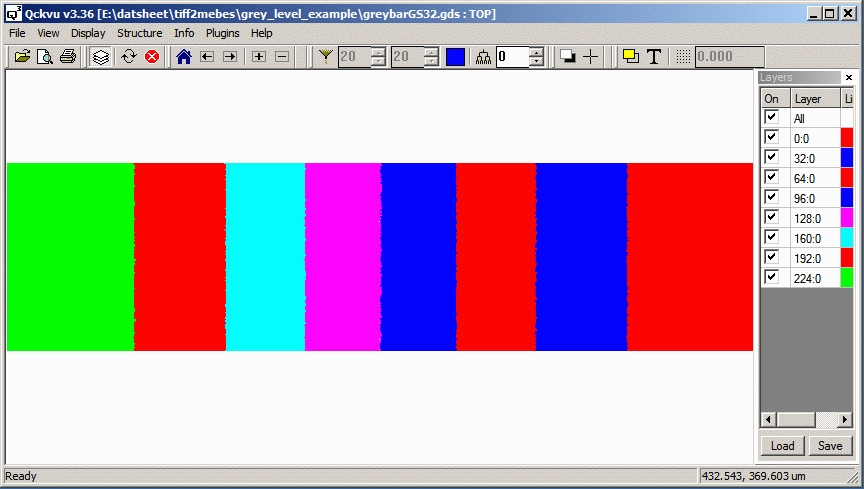

Here is what we see in GDSII. Notice now that there are only a few layers generated.

gdsii from tiff with greystep=32
