Plotting Windows or Extents

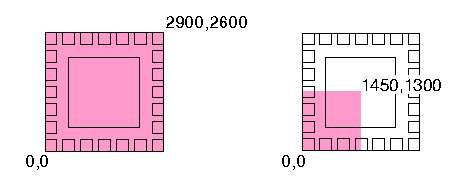

XGDSPLOT allows the user to choose between plotting a structure's extents (which are automatically calculated by the software) or by entering a manual window to plot using coordinates.

image desc


Manual Plot Window

To set a manual window, first open the Plot/Page Definition dialog box and then click on the Manual radio button and enter the corners of the plot window in the box below.

Manual Window Plot
