Downloading and Installing ClipExtract

FTP Access

To access Artwork's ftp server requires a login and password. Please email Artwork for the information when you are ready to download. Please note that many corporate firewalls either completely block ftp downloads or they inspect the download and block any that are executables (applies mostly to Windows.)

Requesting Download and License Codes

Please send Artwork an email identifying yourself and explain your reason for requesting download access and licenses. Please include the hostid of your computer.

Example Email

Dear Hagai,

I would like to evaluate your clipextact program.Please send me the
FTP login, the install password and temporary key strings for my

I got my ethernet physical address by using the lmtools
utility provided above.

ethernet address = 00560abE72

Reason for Evaluation
I intend to use the program to extract many small windows from
a large GDSII file for purposes of wafer inspection.

Thanks much,

John Boy
International Harvesting and IC Design
10087 Champion Way Bldg 43
Topeka Kansas 09323
Tel (450) 132-2213  Fax (450) 132-2113

Files to Download

Windows 64

clipextract.win64.v210.exe   7/31/2018 v2.10 21 MB

Linux 64

qismclipextract.linux.v208.tar   01/22/2018 v2.08 7.1 MB
core components built on RHEL5
some older components built on RHEL4
tested on RHEL5,6 and 7

Getting your Hostid On Windows

In order for us to generate license strings you need to provide us your machine's ID. This is best done by downloading the utility and running it on your machine. Use the System Settings tab and copy the Ethernet Address(s) displayed. See below:

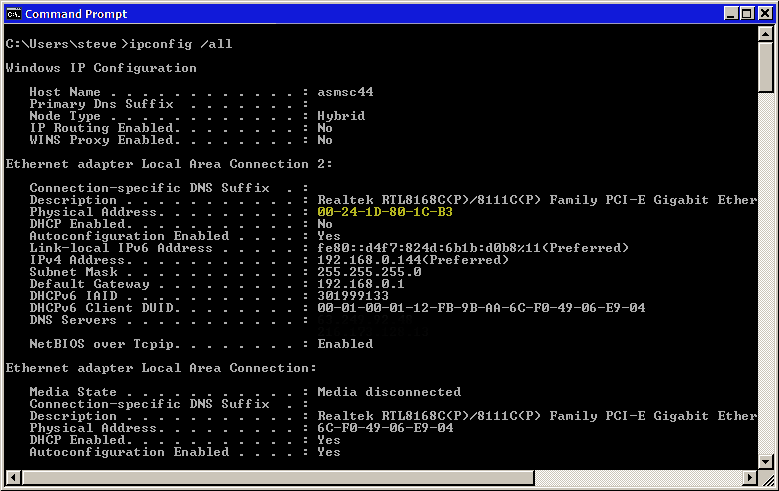

If you cannot download (due to firewall restrictions) you can get this Ethernet manually by using the command: ipconfig /all from a command (DOS box) prompt. You need to copy the physical address of the active ethernet adaptor.

ipconfig dos box

Getting your Hostid on Linux

Using the hostid command on Linux may not provide the hostid that our licensing software expects. Instead, you should download the lmutil utility, execute it and send Artwork the hostid that this utility generates.
