Layer Color and Outline Settings


Qckvu gives you complete control of layer fill patterns, fill colors, outline color and outline line type for both GDSII Layers and MEBES Levels.

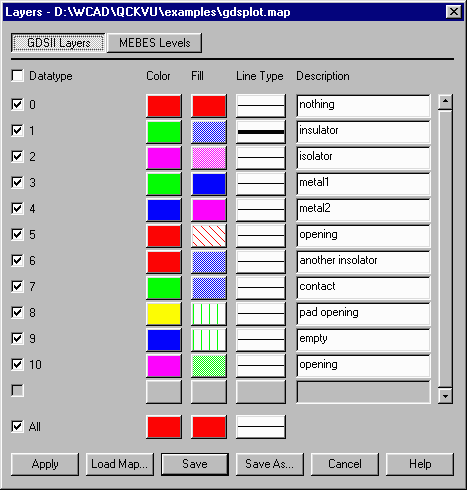

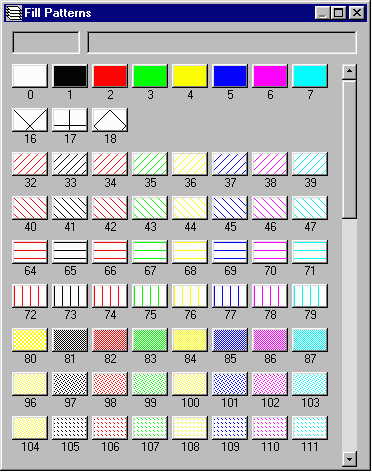

Click on a layerís color in the Layer Table to open Qckvuís Fill Pattern Menu.
