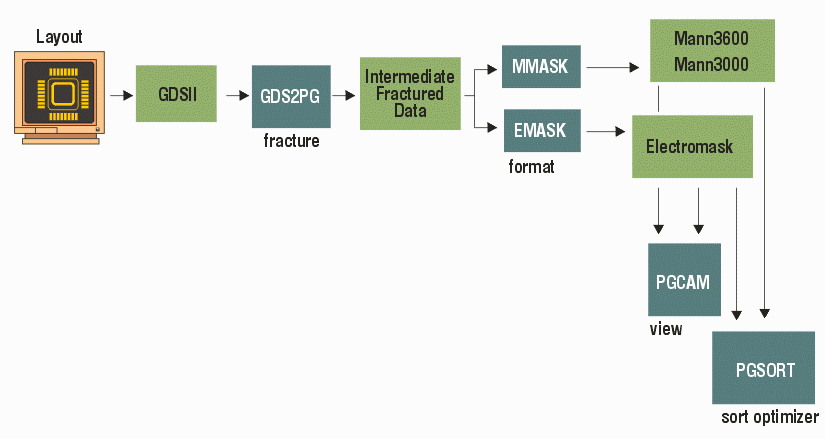

ASM 2600 is a postprocessor that fractures GDSII data into pattern generator code for the Electromask and Mann pattern generators. It processes all angle data, runs on Windows and Linux. It includes PGCAM, a tool for viewing pattern files.
The initial software was developed in the late 1980's to address the hybrid and microwave circuit markets. Since that time a large number of users worldwide have adopted it to control their pattern generators.
We also offer a separate fracturing program for those who design in AutoCAD.
All Angle Support
Fine Grain User Controls
Available Flash Sort
GUI or Command Line
Targets and Calibration Masks
