Importing Trace/Pad Data
As mentioned a trace with width which then terminates on a pad will be first conditioned into a clean boundary. It will then be brought into SolidWorks, extruded in Z (and shifted in Z as needed)

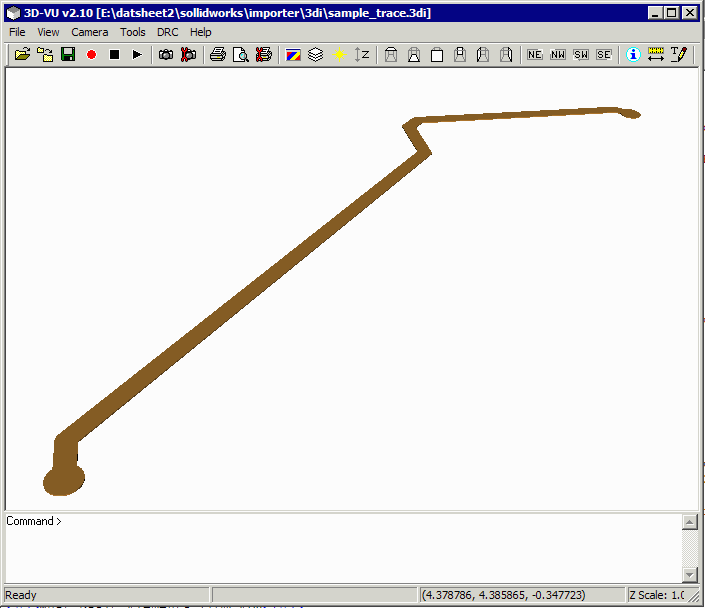

Below you can see the trace with pads as viewed in Artwork's 3DVU.
The 3Di Description of this Trace/Pad Shape
This representation has no arcs. We will be adding arcs in a shape in the near future.
GEOM ID 100002 OBJECT 4 LAYER 5 COLOR 5 NET 1 EXTR 1 0.005000 0.006000 2DPG 95 4.482440 3.537560 4.482070 3.537050 4.481720 3.536700 4.481480 3.536240 4.481130 3.535750 4.480950 3.535200 4.480700 3.534710 4.480610 3.534150 4.480440 3.533620 4.480440 3.533070 4.480350 3.532500 4.480350 3.509610 4.477790 3.507050 4.476090 3.503710 4.475500 3.500000 4.476090 3.496290 4.477790 3.492950 4.480450 3.490290 4.483790 3.488590 4.487500 3.488000 4.491210 3.488590 4.494550 3.490290 4.497210 3.492950 4.498910 3.496290 4.499500 3.500000 4.498910 3.503710 4.497210 3.507050 |
4.494650 3.509610 4.494650 3.529530 4.835060 3.869940 4.835430 3.870450 4.835780 3.870800 4.836020 3.871260 4.836370 3.871750 4.836550 3.872300 4.836800 3.872790 4.836890 3.873350 4.837060 3.873880 4.837060 3.874430 4.837150 3.875000 4.837150 3.932030 4.847970 3.942850 5.084530 3.942850 5.088260 3.939120 5.088000 3.937500 5.088590 3.933790 5.090290 3.930450 5.092950 3.927790 5.096290 3.926090 5.100000 3.925500 5.103710 3.926090 5.107050 3.927790 5.109710 3.930450 5.111410 3.933790 5.112000 3.937500 5.111410 3.941210 5.109710 3.944550 5.107050 3.947210 5.103710 3.948910 5.100000 3.949500 5.098380 3.949240 |
5.092560 3.955060 5.092050 3.955430 5.091700 3.955780 5.091240 3.956020 5.090750 3.956370 5.090200 3.956550 5.089710 3.956800 5.089150 3.956890 5.088620 3.957060 5.088070 3.957060 5.087500 3.957150 4.845000 3.957150 4.844430 3.957060 4.843880 3.957060 4.843350 3.956890 4.842790 3.956800 4.842300 3.956550 4.841750 3.956370 4.841260 3.956020 4.840800 3.955780 4.840450 3.955430 4.839940 3.955060 4.824940 3.940060 4.824570 3.939550 4.824220 3.939200 4.823980 3.938740 4.823630 3.938250 4.823450 3.937700 4.823200 3.937210 4.823110 3.936650 4.822940 3.936120 4.822940 3.935570 4.822850 3.935000 4.822850 3.877970 |
Keywords
GEOM <-- start of a geometry ID 100002 <-- database handle OBJECT 4 <-- object attribute (from table) LAYER 5 <-- layer attribute (from table) COLOR 5 <-- color attribute (from table) NET 1 <-- net attribute (from table) EXTR 1 0.005000 0.006000 <-- extrude from Z=0.005 to Z=0.006 2DPG 95 <-- data to extrude is a 2D polygon with 95 vertices
