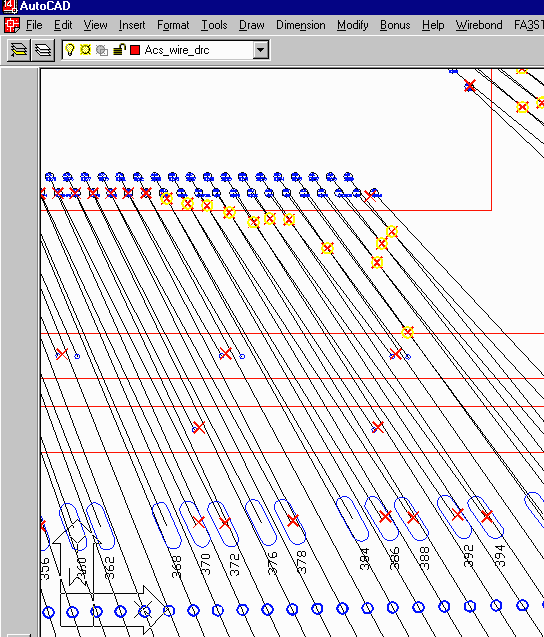

Bondgen quickly highlights where the various assembly rule violations occur. This helps the engineer quickly correct or document the errors.

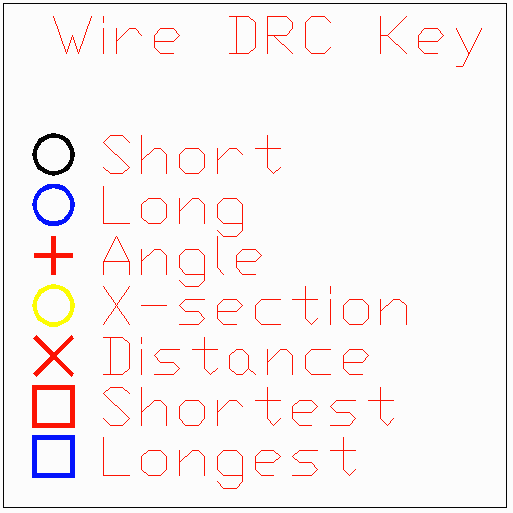

Error Key

Bondgen also draws an error key that can be incorporated into the drawing if you need to transmit the errors to another designer.
