AWROut - Window Selection not Visible

AWROut uses Allegro's Drawing Format | Outline CLASS/SUBCLASS to display and "save" the selection. If that layer is turned off, then you can see the rubberband rectangle but when you finish the command you can't see the rectangle you just drew.

To make sure this is on use the Display pull down and click on Color/Visibility to open the Color Dialog. Then make sure you have Drawing Format tab selected and verify that Outline is checked and that the color is set appropriately.

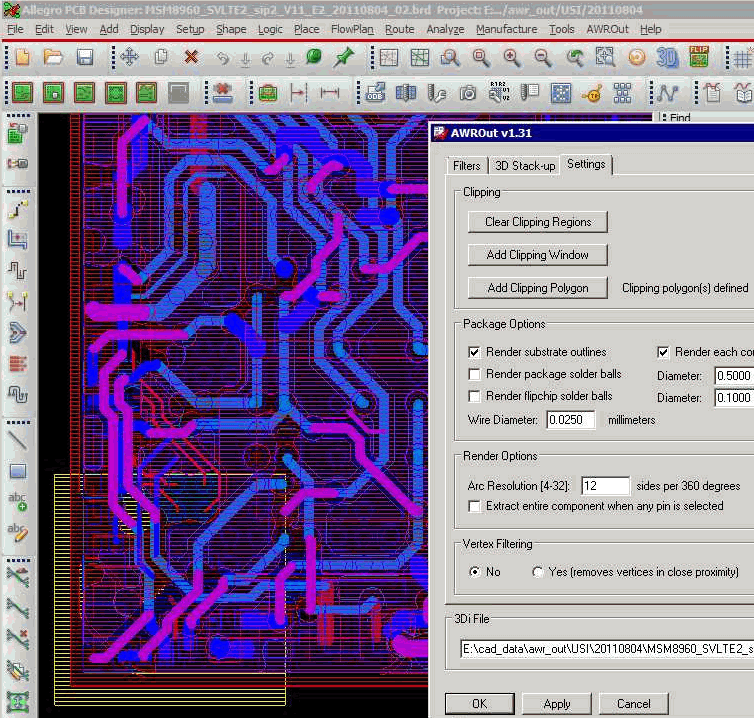

Once you do that, you select your window you will see it in the display as shown below:
