Design Rules

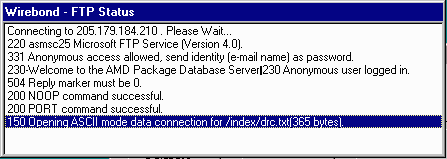

This button downloads the default wire design rules from the package server. This insures that each designer starts with the same copy of the rules.

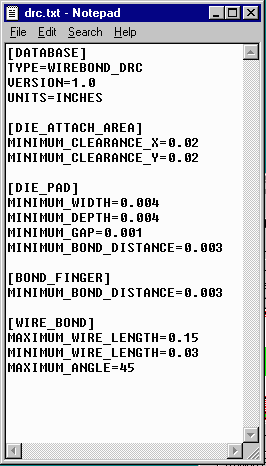

The design rules are used to check each wire after the bonding process is complete. Of course, the designer can edit the rule table to work with the particular package and die under consideration.
