Clipping Window

Because the leadframe was drawn in reverse, all of the package fingers are connected at the periphery of the package. (see below).

before clipping

In order to separate them we need to define a clipping window that is just slightly smaller than the extents of the data.

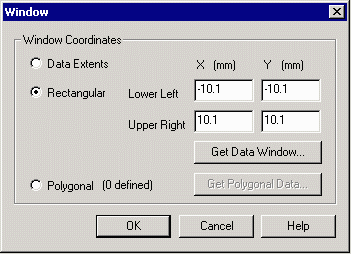

NETEX-G Window Dialog

The result after clipping is that each package finger is now independent and the resulting nets are also independent.

before clipping
