Ansoft Links

Ansoft Links can import an ANF (Ansoft Neutral File) and enables the user to adjust the stackup settings, material settings, to chose nets and to assign solder balls and wires to pads. Once this is done the new ANF file can be passed to Ansoft's tools that read ANF (such as SiWave or Turbo Analyzer).

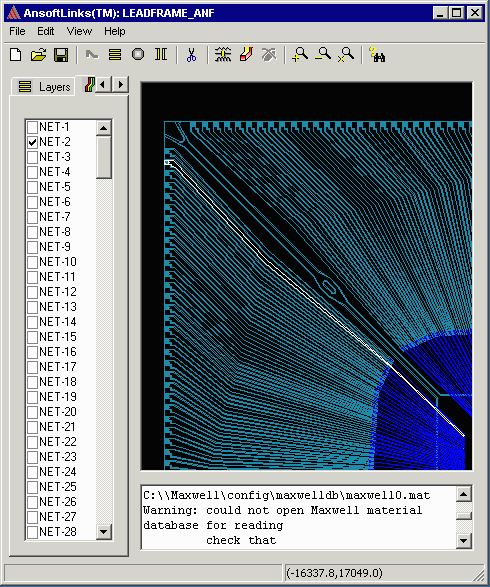

Ansoft Links displaying a Leadframe converted from Gerber Data by NETEX-G


  For products such as Spicelink or HFSS, Ansoft Links can export the special database formats used by these programs.   Ansoft Links can export different models as needed by Ansoft's other signal integrity products.
