Chord Error



Chord Error - a different approach to specifying the number of segments per arc. The chord error is the difference between the ideal arc section and the approximation using segments. Unlike arc res, chord error uses more segments for large radius arcs and less for small radius arcs.

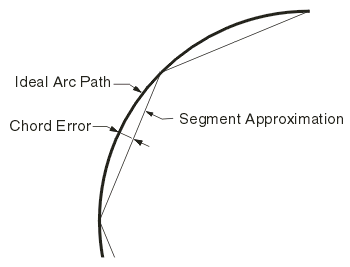

  chord error illustration
