Edge Rasterizer
High Speed Inkjet Rasterizer for Electronic Printing
Fill Mode
For purposes of engineering evaluation, the user can select just to create the outline pixels or can choose to create
Edge - if Edge is selected only the outer droplets along the edge of each conductor are generated.

Filled - if Filled is selected both the outer droplets and inner fill droplets are generated.

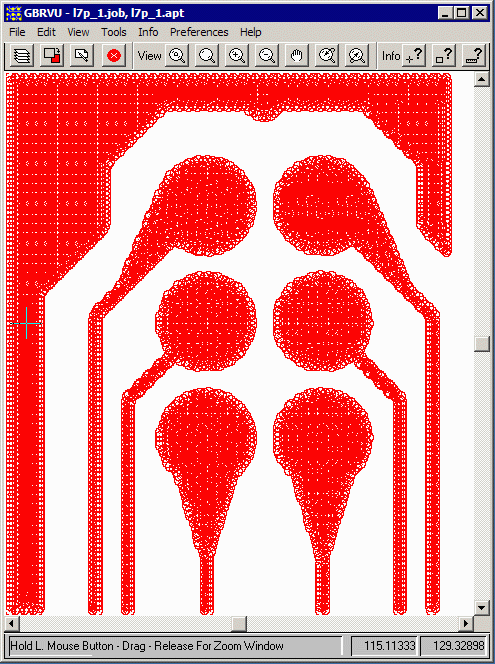

Fill Mode = Filled

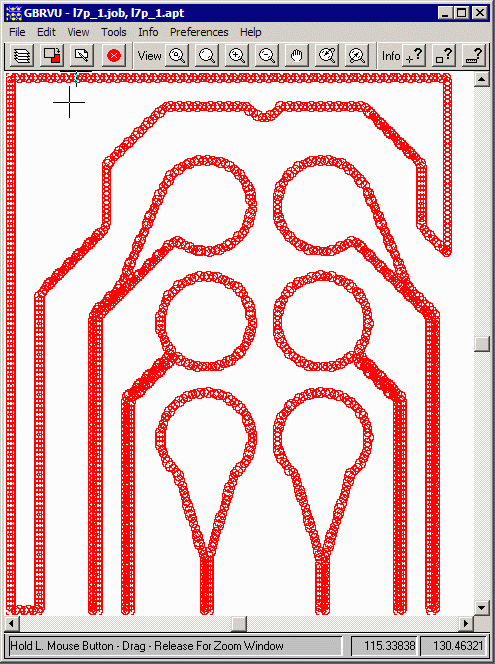

Fill Mode = Edge
