qismview super class

The qismview super class is used to define a view window - the cell, the layers that are on or off, whether text entities should be included and finally the window.

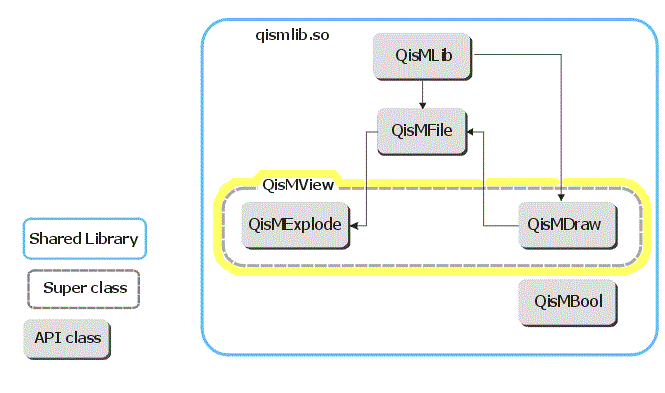

QisMlib API QisMFile API QisMExplode API QisMDraw API QisMBool API QisMView Super Class

Click on any of the API class boxes in the illustration to get details on specific functions.



Defining the Cell and Nesting Levels for this View

Load a particular cell as the current view cell

virtual bool Set_view_cell(const char* cellname) = 0;

Get the current view cell

virtual const char* Get_view_cell() const = 0;

Set the level of hierarchy (nesting level) for which data is processed during traversal.

virtual void Set_nesting_level(const int level) = 0;

Get the cell hierarchy level for which data is processed during traversal.

virtual int Get_nesting_level() const = 0;



Defining Layers and Data Types for this View

Turn layers or layer:datatypes ON or OFF

virtual bool Set_layers_on(const char* layers) = 0;
virtual bool Set_layers_off(const char* layers) = 0;

Get the ON/OFF state of a layer:datatype number

  virtual bool Get_layer_onOff
               (
                 const unsigned short layer,
                 const unsigned short dttp
                )
                const = 0;

Get a list of layer and datatype pairs that are currently ON

  virtual int Get_layers_on
              (
               unsigned short*& layers,
               unsigned short*& dttps
               )
               const = 0;

Release the memory associated with a list of layer or datatype numbers

virtual void Free_layer_list(unsigned short* layersOrDttps) = 0;



Controlling Text Inclusion

Control whether text entities are processed during operations involving database traversal

virtual void Set_text_on(const bool set = true) = 0;

Get the text ON/OFF setting

virtual bool Get_text_on() const = 0;



Defining the Window for this View

Set the view window to the specified coordinates

virtual bool Set_exact_window(const QisMWindow& view) = 0;

Get the coordinates of the view window

virtual void Get_window(QisMWindow& view) const = 0;
