Extracting Thermal Heat Sources for FEA Modeling of Chips

The introduction of TSV's (through silicon vias) equires chip designers and packaging engineers to examine in more detail the stresses that thermal expansion of the silicon chip places on the TSV's mating surfaces.

In order to model such stresses one first needs a temperature model. To build a temperature model one needs to know: the locations of heat sources on the chip the amount of heat each source generates boundary conditions

Once this data is collected, it can be input into a thermal simulation tool that then produces a temperature map or profile throughout the chip.

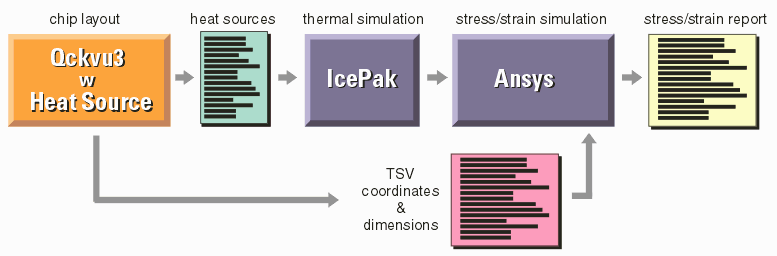

Temp Profile to Expansion to Stress

Having computed the 3D temperature profile of the silicon you can pass this information into a mechanical FEA tool, that together with the chip's material properties, will be used to compute the expansion, and if the chip is fixed (say to a heatsink or another chip) the local forces generated by the expansion.

Effect on TSV

Since the TSV runs through the length of the chip and is attached to a second body on at least one end, it too will be subject to forces due to thermal expansion. Knowing where each TSV is located and its crossection one can then predict the forces on the TSV that might cause it to detach from the adjoining chip or substrate.

Collecting the Necessary Data

We are going to assume that you do not have access to some high level design tool, such as Cadence Encounter, that already can produce all the data you need. Instead we are going to asssume that you are "throwing over the wall" data from the IC designers to the thermal/mechanical designer.

In this case the IC designer needs to collect the following:

• GDSII Layout of the Chip - the thermal designer will use this to define the chip's extents, the location of heat generating cells and the location of the TSV's.

• a table of cell blocks vs their heat dissipation. The trick here, first is to get some reasonable numbers and to collect the data at the right level of granularity -- you don't want to use such a tiny functional cell such as a gate where you will get 100,000 heat sources. Most important, the names in this table must match the GDSII structure/cell names since we will use this list to extract all of the placements of the cells in the GDSII file.

Using Qckvu3 with the Heat Source Plug-In

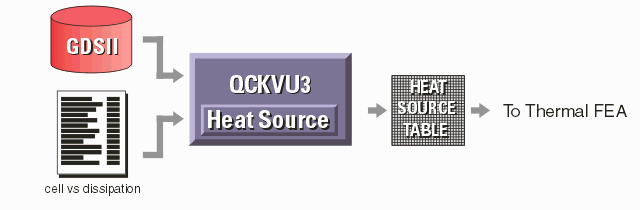

Artwork's Qckvu3 with the Heat Source plug-in is ideal for extracting the rectangle heat source coordinates. The flow chart below shows how we will use the program to collect and format the thermal data. If you would like to see a short video of this process, click here.

Opening the GDSII File

First the GDSII file under analysis is opened and the display mode is set to show just the cell placement outlines. We don't want the detailed metal, diffusion, poly and implant layers.

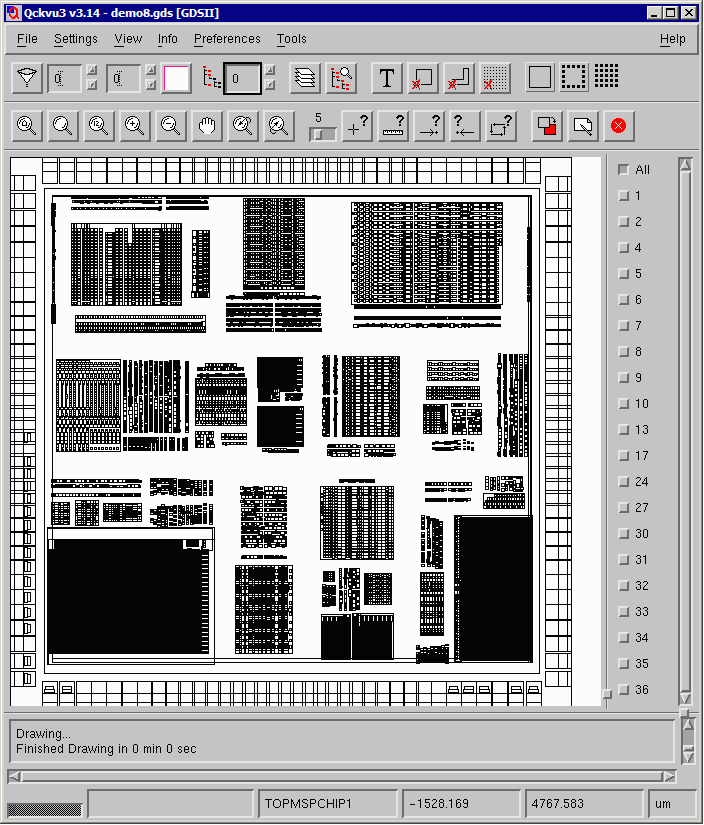

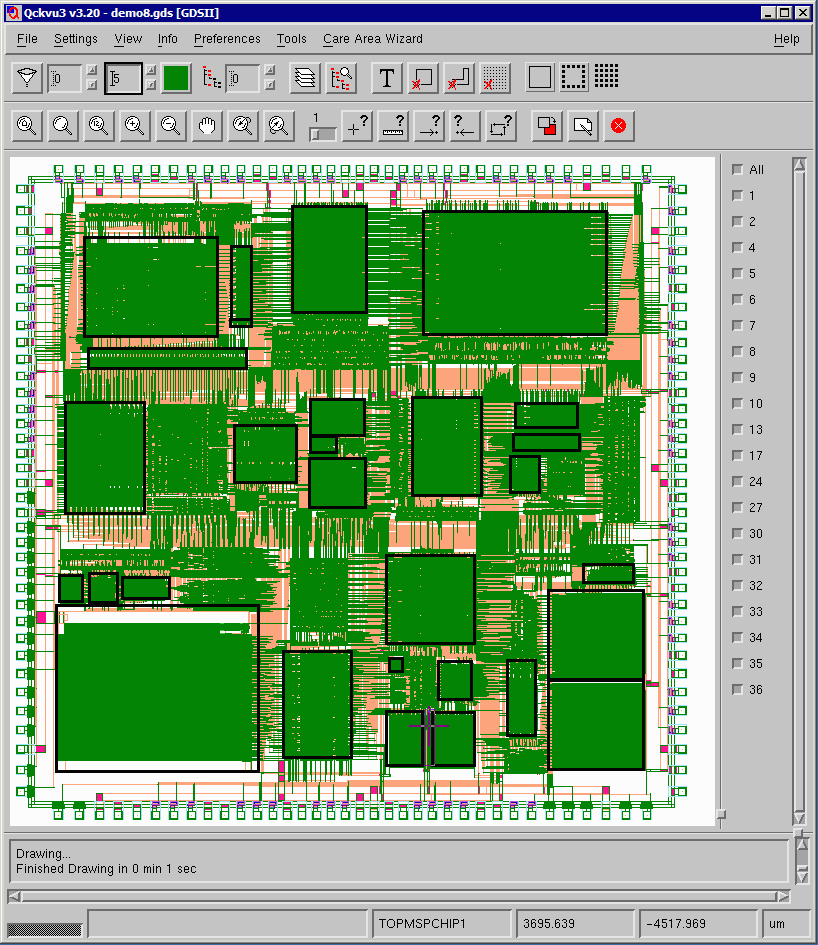

View of a Chip in Cell Outline Display Mode

We now use the Heat Source Plug In to open an ASCII file (already prepared) that contains a list of cells and the power dissipation associated with each cell. The list looks something like this:

TOPHSAB_HSABPD,120
TOPHSAB_HSABPA,140
RAM64X16$F36,20
TOPALU1_ALUDP1,230
TOPMAC1_MACDP3,120
TOPMAC1_MACDP2,105
TOPMAC1_MACDP1,110
MAC242455,209
G79S8F35,40
G79S2F35,55
G79S4F35,40
TOPXYOPMUX_XYMUXDP1,340
TOPXYREGBANKS_XYDP1,40
TOPSTATCONFIG_STATDP1,400
TOPCONDINTLED_DPCND1,110
TOPUCODETIMING_CODEDP4,35
TOPUCODETIMING_CODEDP3,35
TOPUCODETIMING_CODEDP2,35
TOPUCODETIMING_CODEDP1,35
TOPINDEXNOISE_INDEXDP1,105
TOPHOSTIINTFC_HOSTDP1,100
TOPDRAMINTFC_DRAMDP5,20
TOPDRAMINTFC_DRAMDP4,20
TOPDRAMINTFC_DRAMDP3,20
TOPDRAMADDR_DRADDP1,45
RAM256X24$F36, 220
G79S0F35, 205
G62S1F35, 180

The first column in the file is a cell name and the second column is a power dissipation.

Dialog Box Fields and Functions

Input CSV File - select the ascii list containing the list of cells and power dissipation associated with each cell. The file can be comma, space or tab delimited.

Verify Cells - if this button is checked, the list of cell names in the CSV file is compared to the names found in the GDSII file and if they cannot be matched they are flagged.

Power - Power can be expressed as an absolute value for that cell (i.e. 250 mw) or as a power density i.e. 10w/square cm. The power units must be selected (uw, mw, w) as well as the area units (um, mm, cm, m) if density is selected.

Output File - the user selects the directory and base file name for the output. Three files are produced: an ascii heat source file suitable for import into IcePak, an GDSII file showing the outlines of the heat sources, a log file summarizing the conversion which will contain the input data (list of heat sources) along with any warnings and conversion statistics.

Run - starts the computation and outputs the heat source file.

Advanced - allows the user to set default values for Z-height and plane number (as required by ICEPak)

Heat Source Output File

Now that we have all of the geometry, the final step is to take our cell placement outlines, convert them to ASCII and build a table that can be read into ICEPAK. Arwork can easily customize the output formatter to whatever syntax is needed. Here is the format of what the ICEPAK software needs to see:

cell name        LLx    LLy    LLz    URx    URy    URz    Plane

Grid_0_0          0     0      350   1000    1000    350      2

Grid_0_1          1000  0      350   2000    1000    350      2

#Sources Rectangular Object


name       power_total    power_total_units


Grid_0_0    0.00240514         W
Grid_0_1    0.00281215         W

Once IcePak has this heat source file, the simulation engineer adds in a couple of simple geometries and their thermal properites and of course, the boundary conditions - for example he may "attach" the bottom of the chip to a copper heatsink, and the other surfaces interface to air.

The output of IcePak is a 3D distribution of temperature.

This distribution along with the material properties of the chip can then be used as input to Ansys where one compute a 3D map of stresses and strains.
