XGDSPLOT FILL PATTERNS

The patterns used to fill boundaries are derived from an ASCII look up table. Artwork provides hundreds of default patterns that have been optimized for multi-layer plots. You can of course create your own patterns simply by editing the colfill.pat file.

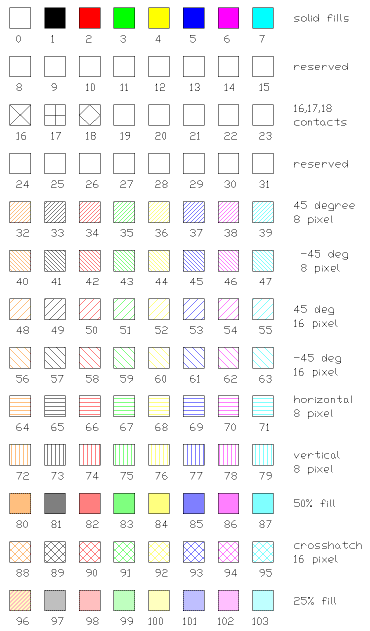

At right you can see a print out of the first 100 standard fill patterns.
