Boundary Linetype

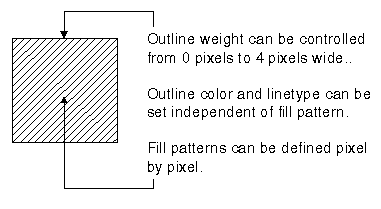

Line Type and Fill Control

Line Type Control

The line that borders a boundary can be set as follows:



Color

Choice of R,G,B,C,Y,M,K

Line Pattern

8 dashed patterns including no-line and continuous



Line Weight

4 lineweights - 1,2,3,4 pixels thick. Keeps your text from disappearing in a sea of boundaries

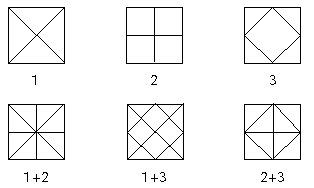

Contact Layer Fills




We've developed a special fill pattern for contact and via layers. This is a "transparent" fill that enables the designer to see through a contact.

The three types are:

X - an x through the square or rectangular contact

Plus - a plus sign

Diamond - a diamond shape
