ASM 3500 DXF to GDSII Bidirectional Translator

Description

ASM 3500W makes translating between AutoCAD’s DXF file format and GDSII a snap. This fully menu driven program takes you step by step through the process. Translation parameters are easy to set and are remembered from job to job.

ASM 3500 can link lines and arcs into the closed boundaries required by GDSII. Any bad polygons or open figures are moved to an error layer so that the user can quickly identify and correct them.

The translation engines can also be called from other programs via a command line making it easy to integrate the translators into design frameworks.

        Features
  • Supports Full Hierarchy in Both Directions

  • User Selectable Layers

  • Unit Conversion

  • Links Lines and Arcs

  • Checks for Valid Polygons

  • User Defined Vertices per Boundary

  • Moves “bad” Polygons to Error Layer

  • Single Layer Polygon De-embedding

        Applications
  • Use AutoCAD to draw complex masks

  • Convert IC pad ring to DXF for package design

  • Design of MCM/LTCC/Hybrid Packages

  • Design of GaAs MMICs

  • Design of Complex MEMs

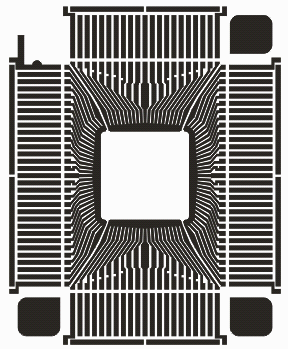

Right: This leadframe has finger tips of 50 um width and spacing. In order to produce the artwork for it, the designer converts his DXF drawing into GDSII stream. 		IC Lead Frame
