Resulting Gerber Output

Here is what each of our layers looks like in Gerber:

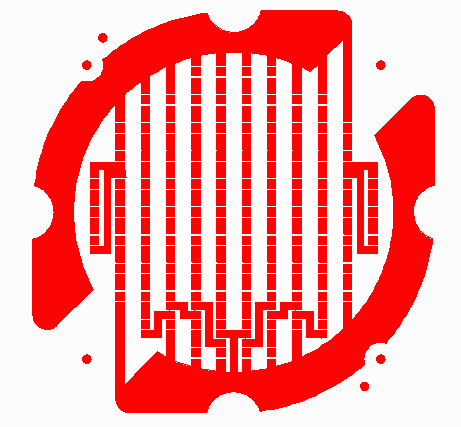

CIRCUIT.GBR

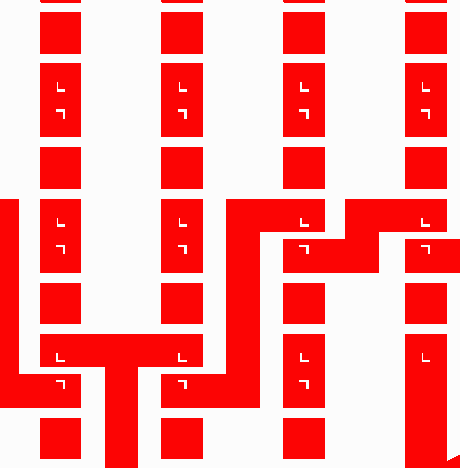

Zoom in detail shows the openings achieved using de-embedding.

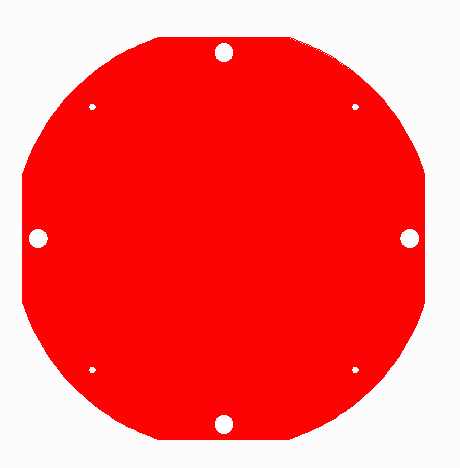

COPPER_BASE.GBR

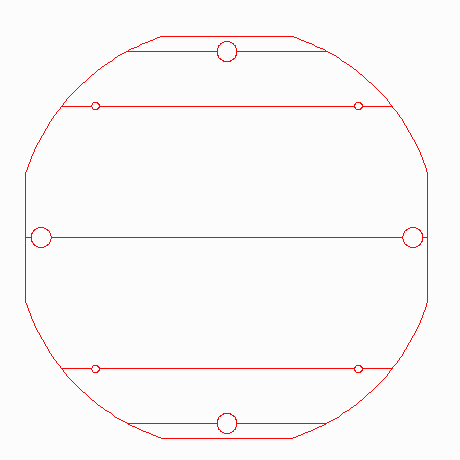

When shown in outline mode you can see the slices generated.

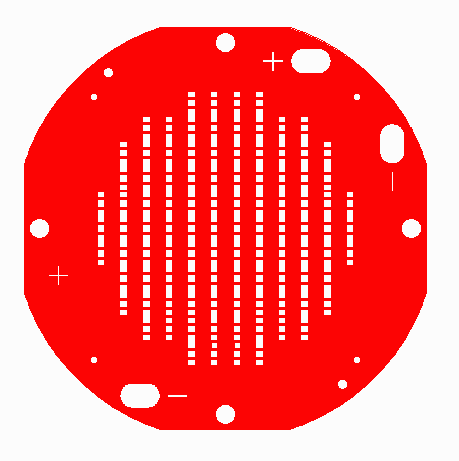

DIELECTRIC_UPPER.GBR

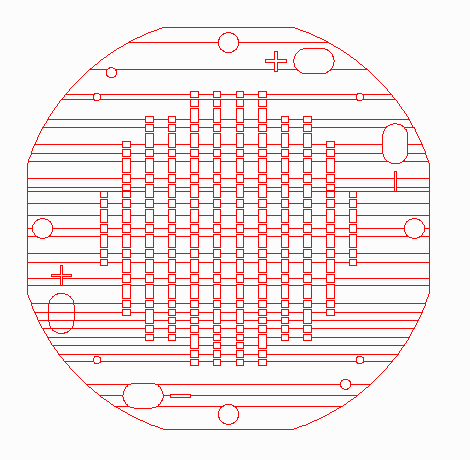

There is a problem with the conversion on this one. See it?
